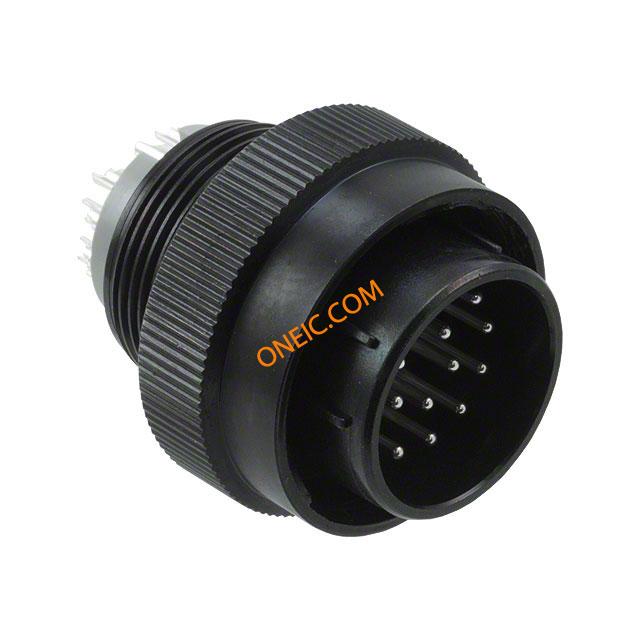

JL05-6A20-29P-R
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Mechanical
| Packaging | Bulk | Shell Size | 17 |
| Orientation | N (Normal) | Shell Style | Plug |
| Termination | Solder | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Male Pins | Contact Finish | Silver |
| Fastening Type | Bayonet Lock | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 20 |
| Number of Positions | 17 | Shell Size - Insert | 20-29 |
| Shell Material, Finish | Aluminum, Zinc Plated, Black | ||
Product Info
| Series | JL05 | Product Type | Connectors |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
PDF Document
Similar Parts
Sourcing & traceability
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
