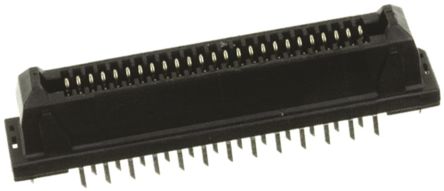

TX24-50R-6ST-H1E
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 100 |
Compliance
| RoHS | Compliant | Tariff No | 85366930 |
Electrical
| Contact Resistance | :40mohm | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | :100Mohm-m |
Mechanical
| Pitch | 1.25mm | Weight | 0.02 |
| Termination | Solder | Lead Spacing | :1.27mm |
| Pitch - Post | :1.905mm | Mounting Type | Straight |
| Contact Finish | :Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Number of Contacts | 50 |
| Contact Termination | :Through Hole Vertical | ||
Product Info
| Type | Board to Board | Gender | :Socket |
| Series | :TX24 | ||
Environmental
| Operating Temperature | :80°C | ||
