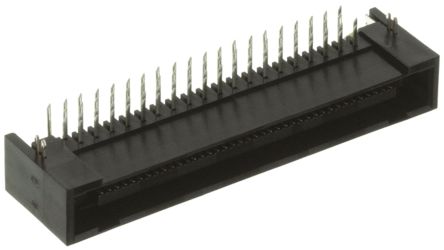

TX25-40P-LT-H1E
| Manufacturer | |
| Description | 40P BTB CONECTOR 1.27 PITCH JAE TX25 Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 1A PLUG, RIGHT ANGLE, 40WAY JAE TX25 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 100 |
Compliance
| RoHS | Compliant | Tariff No | 85366930 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Approval Agency | UL94V-0 | ||
Electrical
| Voltage Rating | 500V | Current Rating (Max) | GOLDA |
Mechanical
| Pitch | 2.54mm | Weight | 0.02 |
| Cable Exit | 1.27 | Orientation | RIGHTANGLE |
| Shield Type | 500 | Termination | Solder |
| Contact Type | MALE | Lead Spacing | :1.27mm |
| Pitch - Post | 1.27mm | Mounting Type | Right Angle |
| Contact Finish | :Gold | Number of Rows | 02 |
| Contact Material | Copper Alloy | Housing Material | PBT |
| Termination Style | THT | Number of Contacts | 40 |
| Contact Termination | :Through Hole Right Angle | Contact Material - Plating | GOLD |
Product Info
| Type | Board to Board | Gender | :Header |
| Series | TX24/TX25 | Matchcode | TX2540PLTH1E |
| Standard Leadtime | 17 weeks | ||
Environmental
| Mating Cycles | 1.0 | Operating Temperature | -40 TO 80°C |
