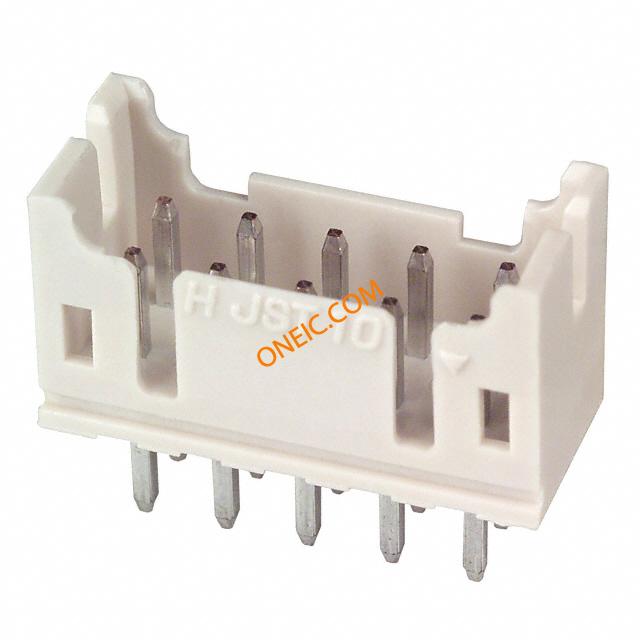

B10B-PHDSS
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 455-1331 | Standard Package | 500 |
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 250VDC/250VAC | ||
Mechanical
| Color | Natural | Depth | 5 mm |
| Pitch | 0.079" (2.00mm) | Height | 6.5 mm |
| Packaging | Bulk | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Ivory | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin-Lead |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polyamide 66 |
| Length - Overall | 11.9 mm | Number of Contacts | 2 |
| Number of Positions | 10 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25C to 85C | ||
