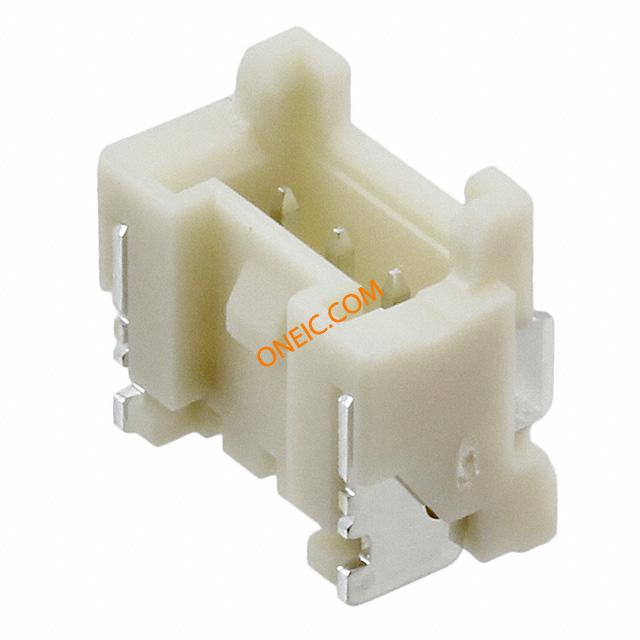

(SN).JPG)
点击放大查看

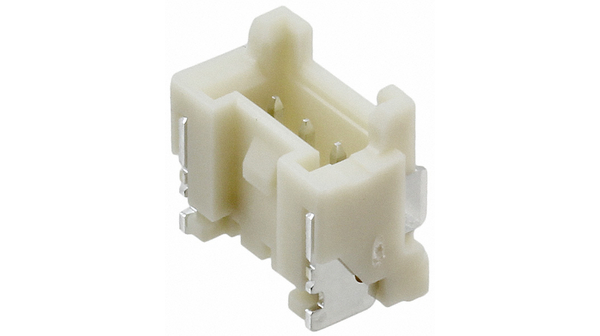

BM03B-PASS-1-TFT(LF)(SN)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 455-2638-1 | Standard Package | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 3 |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhm |
Mechanical
| Color | Natural | Pitch | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Connector Style | Single row | Contact Material | Tin-plated copper |
| Housing Material | Polyamide (PA/Nylon) | Color - Connectors | ivory |
| Number of Positions | 3 | 1st Connector Gender | Male |
| Wire Gauge or Range - AWG | 28...22 AWG | ||
Product Info
| Series | PA | Features | Board Guide, Solder Retention |
| Connection Method | Wire-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -25...+85 °C | ||
