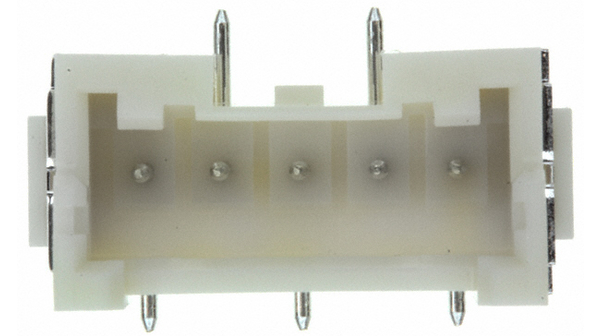

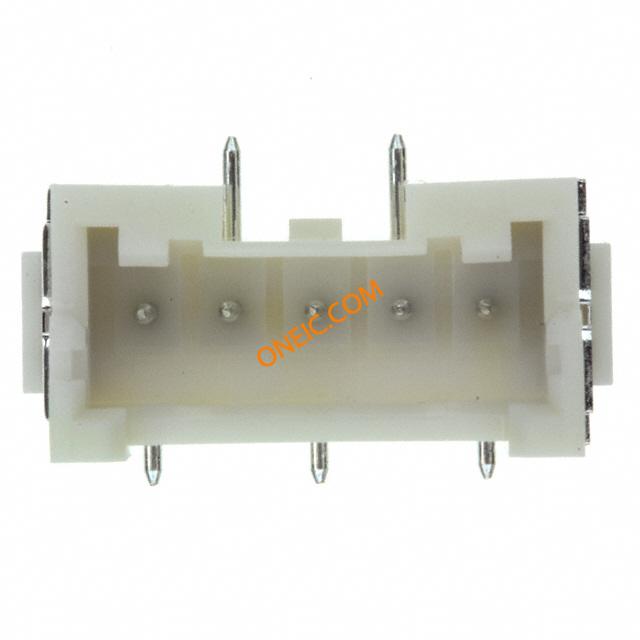

BM05B-XASS-TF(LF)(SN)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 455-2024-1 | Standard Package | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 2050 | Number of Poles | 5 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 3 A |
| Insulation Resistance | 1000 MOhm | ||
Mechanical
| Color | Natural | Pitch | 0.098" (2.50mm) |
| Packaging | Tape & Reel (TR) | Orientation | 直 |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Surface Mount | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Number of Rows | 1 | Connector Style | Single row |
| Contact Material | 铜合金 | Housing Material | Polyamide (PA/Nylon) |
| Termination Rows | 焊接 | Color - Connectors | ivory |
| Number of Contacts | 5 | Number of Positions | 5 |
| 1st Connector Gender | Male | Wire Gauge or Range - AWG | 28...20 AWG |
Product Info
| Type | 板对线 | Series | XA |
| Coverage | 覆盖 | Connection Method | Wire-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
