Business
| Standard Package | 5,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 5 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 3 A |
| Insulation Resistance | 1000 MOhm | ||
Mechanical
| Color | Natural | Depth | 8mm |
| Pitch | 0.079" (2.00mm) | Width | 5.8mm |
| Length | 12mm | Packaging | Bulk |
| Orientation | 直 | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Number of Rows | 1 |
| Connector Style | Single row | Housing Material | Nylon |
| Color - Connectors | white | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| 1st Connector Gender | Female | Wire Gauge or Range - AWG | 28...22 AWG |
Product Info
| Note | Contacts Not Provided | Type | Female housing |
| Series | PA | Connection Method | Wire-Board |
| For Use With/Related Products | Crimp Connector | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
PDF Document
Similar Parts
PALR-05VF
JST Sales America Inc
$0.3271
Details
SPHD-001T-P0.5
JST Sales America Inc
$0.1040
Details
SPHD-002T-P0.5
JST Sales America Inc
$0.0229
Details
(SN).jpg&w=3840&q=75)

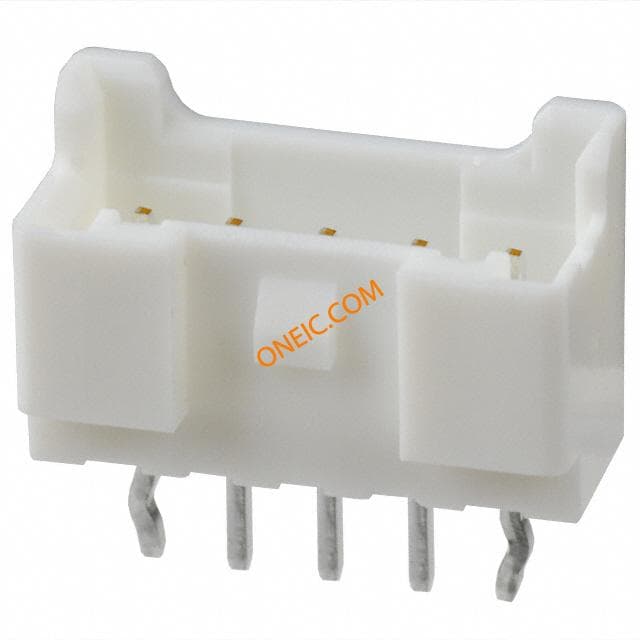

B05B-PASK(LF)(SN)
JST Sales America Inc
$0.7030
Details
SM05B-PASS-TBT(LF)(SN)
JST Sales America Inc
$3.1722
Details
(SN).jpg&w=3840&q=75)

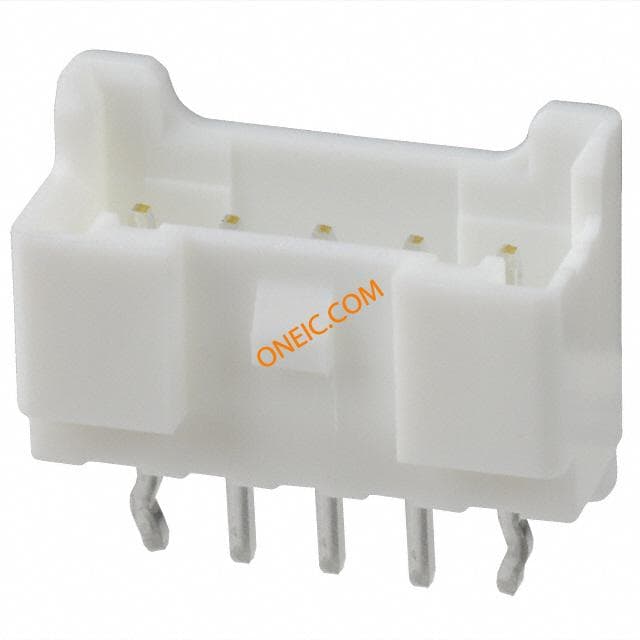

B05B-PASK-1(LF)(SN)
JST Sales America Inc
$0.9119
Details
(SN).JPG&w=3840&q=75)

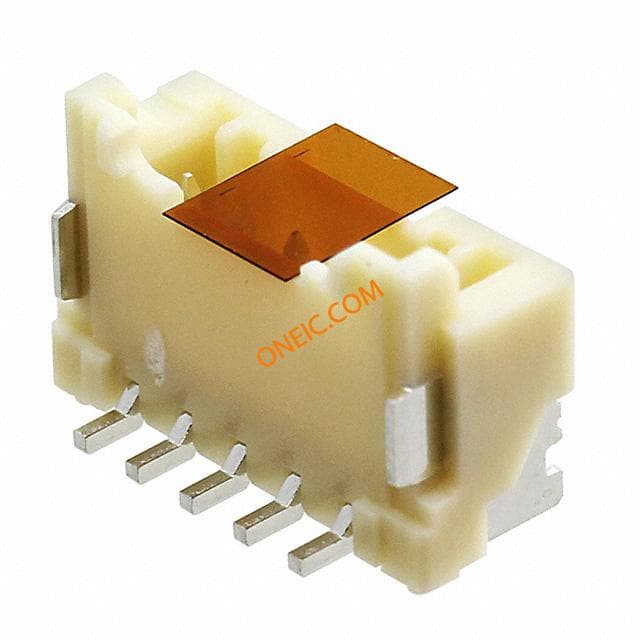

BM05B-PASS-1-TFT(LF)(SN)
JST Sales America Inc
$3.2722
Details
(SN).jpg&w=3840&q=75)

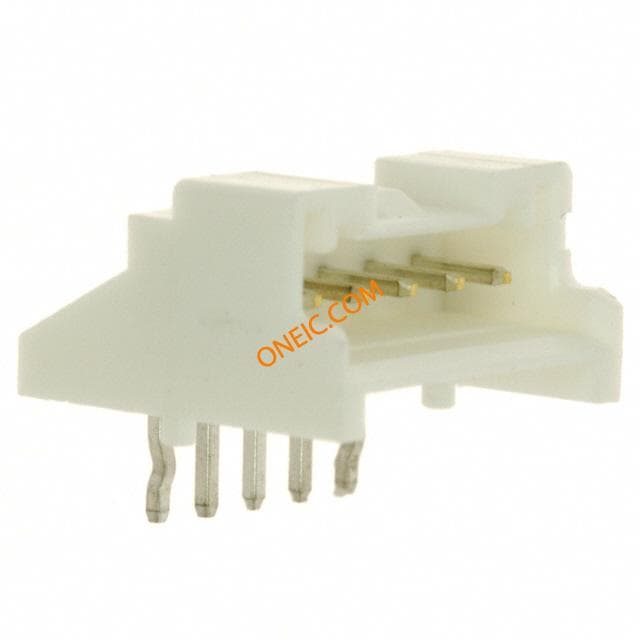

S05B-PASK-2(LF)(SN)
