Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 7 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 3 A |
| Insulation Resistance | 1000 MOhm | Connector - Voltage Input | Crimp |
Mechanical
| Color | Natural | Depth | 8mm |
| Pitch | 0.079" (2.00mm) | Width | 5.8mm |
| Length | 16mm | Packaging | Bulk |
| Orientation | 直 | Contact Form | Female Socket |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Number of Rows | 1 | Connector Style | Single row |
| Housing Material | Nylon | Color - Connectors | white |
| Number of Contacts | 7 | Contact Termination | Crimp |
| Number of Positions | 7 | 1st Connector Gender | Female |
| Wire Gauge or Range - AWG | 28...22 AWG | ||
Product Info
| Note | Contacts Not Provided | Type | Female housing |
| Series | PA | Connection Method | Wire-Board |
| Output Configuration | Free Hanging (In-Line) | For Use With/Related Products | Crimp Connector |
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
PDF Document
Similar Parts
PALR-07VF
JST Sales America Inc
$0.6508
Details
PALR-07V
JST Sales America Inc
$0.5318
Details
SPHD-001T-P0.5
JST Sales America Inc
$0.1040
Details
SPHD-002T-P0.5
JST Sales America Inc
$0.0229
Details
(SN).JPG&w=3840&q=75)

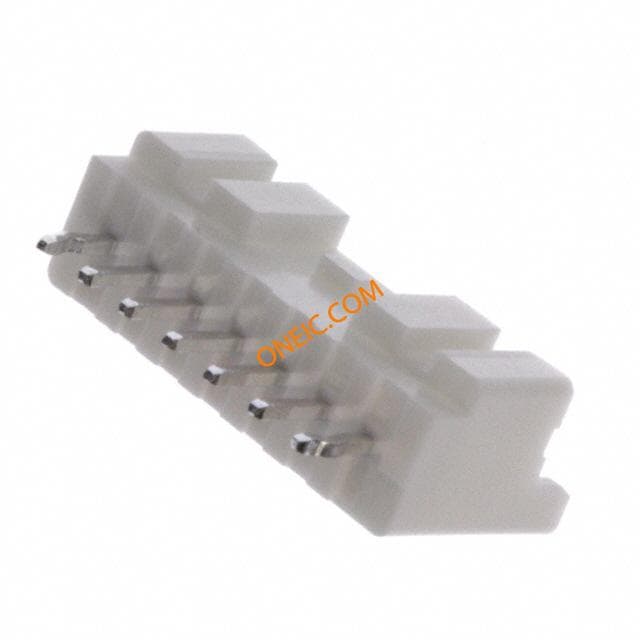

B07B-PASK(LF)(SN)
JST Sales America Inc
$0.8908
Details
(SN).JPG&w=3840&q=75)

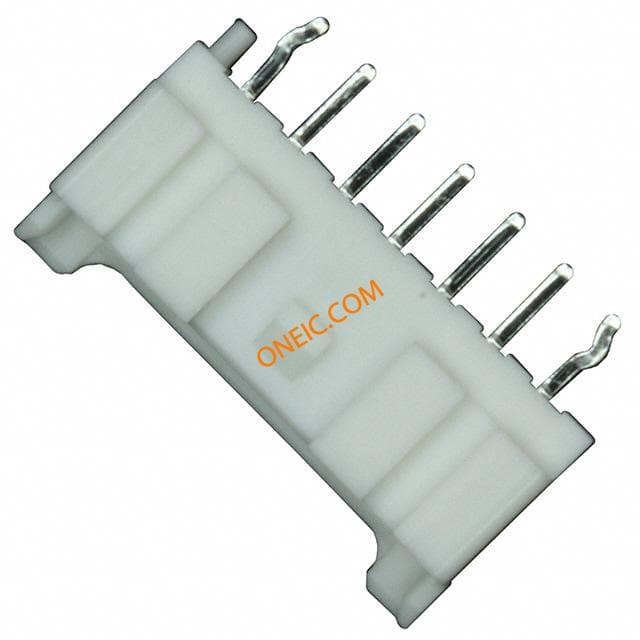

B07B-PASK-1(LF)(SN)
JST Sales America Inc
$1.3600
Details
(SN).JPG&w=3840&q=75)

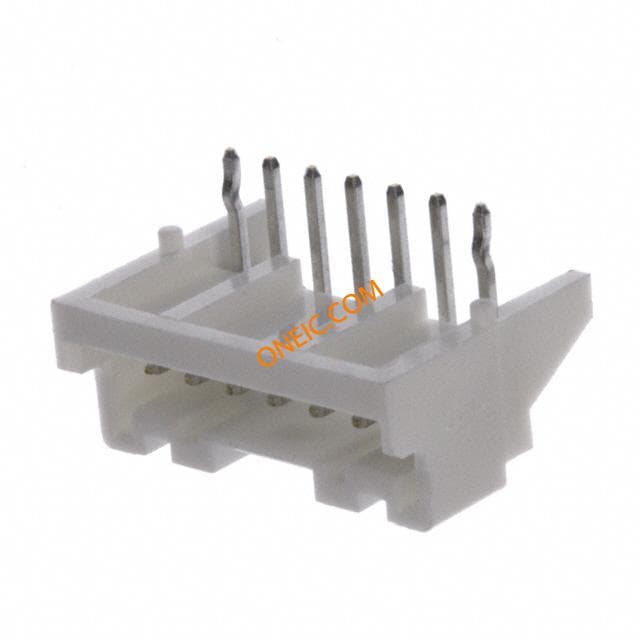

S07B-PASK-2(LF)(SN)
JST Sales America Inc
$1.4362
Details

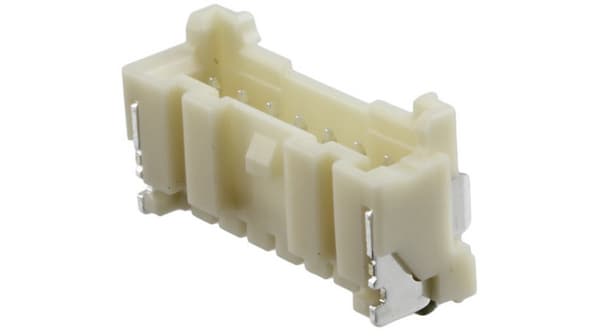

BM07B-PASS-1-TFT(LF)(SN)
