Business
| Standard Package | 1,000 | ||
Electrical
| Current Rating (Max) | 2 A | Voltage - Supply (Min) | 100VDC/100VAC |
Mechanical
| Color | Natural | Depth | 6.85 mm |
| Pitch | 0.079" (2.00mm) | Width | 4.5mm |
| Height | 4.5 mm | Length | 22mm |
| Packaging | Bulk | Wire Gauge | 24-30 |
| Orientation | 直 | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Detent Lock |
| Number of Rows | 1 | Housing Material | Polyamide 66 |
| Length - Overall | 25.8 mm | Number of Contacts | 1 |
| Contact Termination | Crimp | Number of Positions | 12 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | PHR |
| For Use With/Related Products | PH 系列可断开压接型连接器 | ||
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts

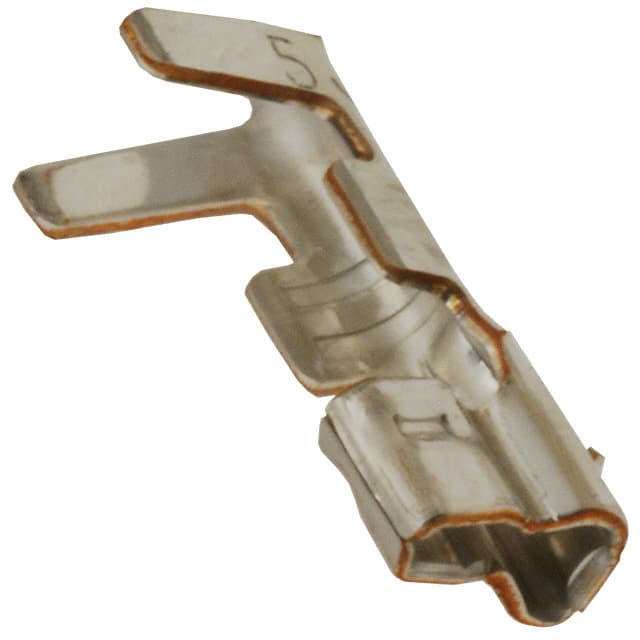

SPH-002T-P0.5L
JST Sales America Inc
$0.0952
Details

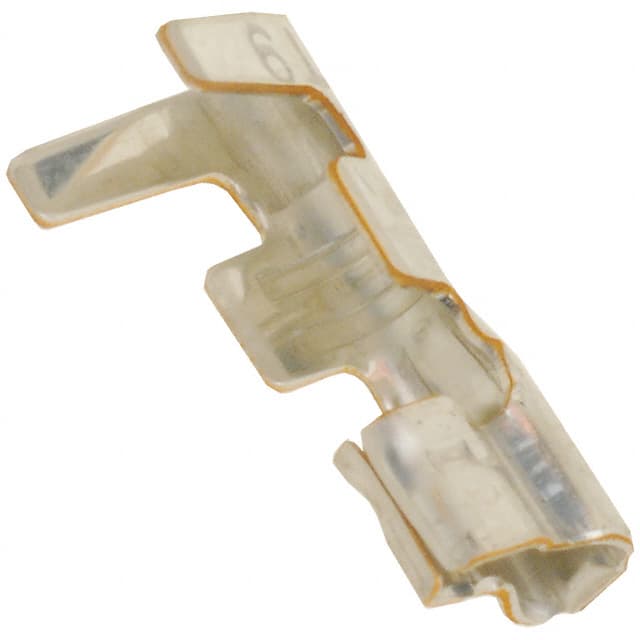

SPH-004T-P0.5S
JST Sales America Inc
$0.0346
Details
SPH-002T-P0.5S
JST Sales America Inc
$0.0558
Details
SPH-002GW-P0.5L
JST Sales America Inc
$1.1016
Details
S12B-PH-SM4-TB(LF)(SN)
JST Sales America Inc
$2.0223
Details

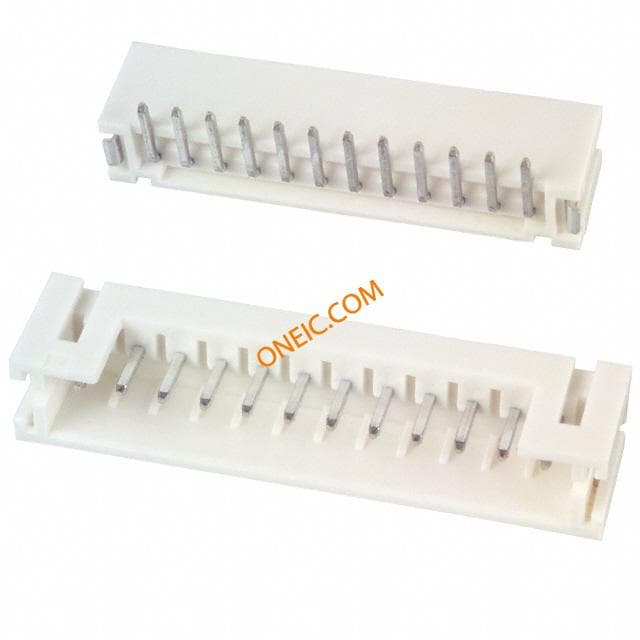

B12B-PH-SM4-TB(LF)(SN)
JST Sales America Inc
$2.1644
Details

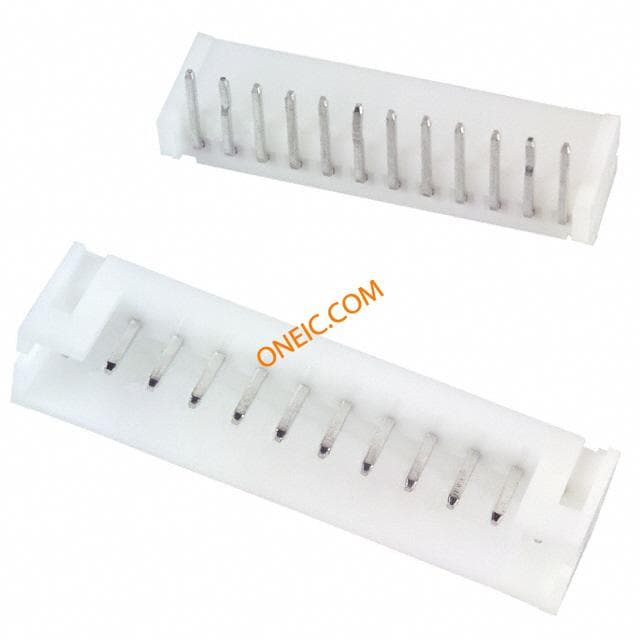

S12B-PH-K-S(LF)(SN)
JST Sales America Inc
$0.7385
Details

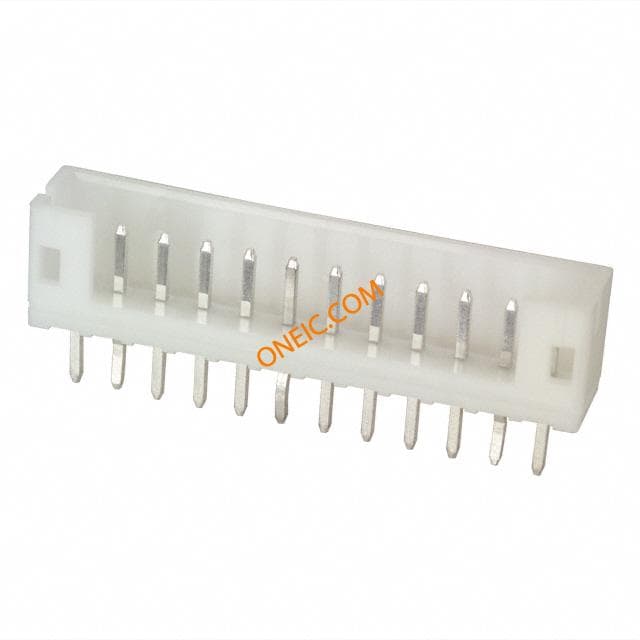

B12B-PH-K-S(LF)(SN)
JST Sales America Inc
$0.5236
Details
S12B-PH-K-S
JST Sales America Inc
$1.7126
Details
B12B-PH-K-S
JST Sales America Inc
$1.7422
Details
B12B-PH-SM3-TB
JST Sales America Inc
$15.5040
Details
S12B-PH-SM3-TB
JST Sales America Inc
$5.3564
Details
Sourcing & traceability
- Datasheet
- PH Series
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
