Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 800 | Voltage Rating | 100 |
| Number of Poles | 4 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 2 A | Insulation Resistance | 1000 MOhm |
| Connector - Voltage Input | Crimp | ||
Mechanical
| Color | Natural | Depth | 6.85mm |
| Pitch | 0.079" (2.00mm) | Width | 4.5mm |
| Length | 9.8mm | Packaging | Bulk |
| Body Color | 7.5 | Orientation | 直 |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Detent Lock | Number of Rows | 1 |
| Contact Material | Tin-plated phosphor bronze | Housing Material | Nylon |
| Number of Contacts | 4 | Contact Termination | Crimp |
| Number of Positions | 4 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | PH | Amplifier Type | 4.5 |
| Connection Method | Wire-Board | Output Configuration | Free Hanging (In-Line) |
| For Use With/Related Products | Removable crimp connector | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
PDF Document
Similar Parts
SPH-002T-P0.5L
JST Sales America Inc
$0.0952
Details
SPH-004T-P0.5S
JST Sales America Inc
$0.0346
Details
SPH-002T-P0.5S
JST Sales America Inc
$0.0558
Details
SPH-002GW-P0.5L
JST Sales America Inc
$1.1016
Details
(SN).jpg&w=3840&q=75)

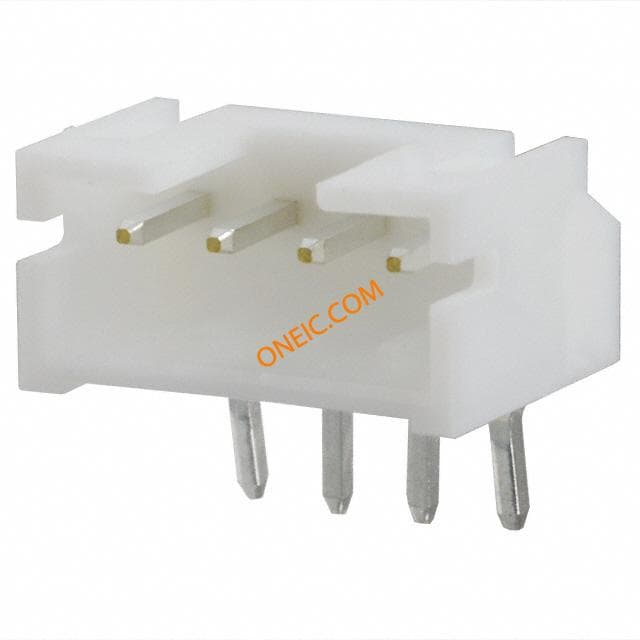

S4B-PH-K-S(LF)(SN)
JST Sales America Inc
$0.3244
Details
B4B-PH-K-S(LF)(SN)
JST Sales America Inc
$0.1904
Details

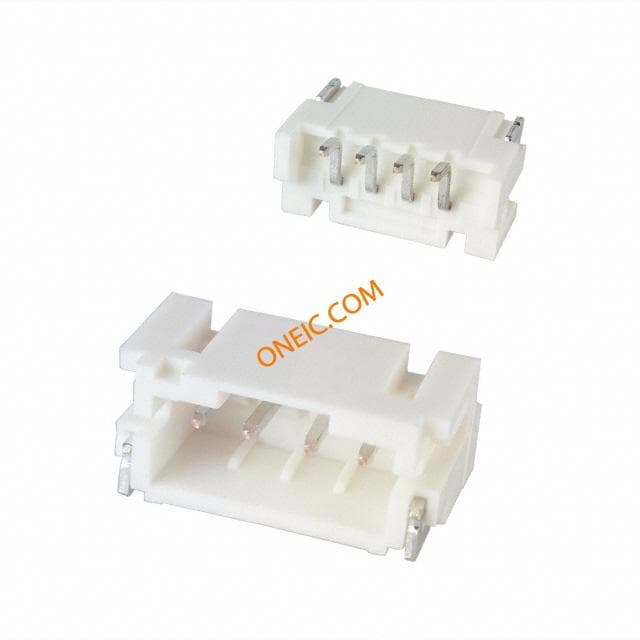

S4B-PH-SM4-TB(LF)(SN)
JST Sales America Inc
$1.2995
Details

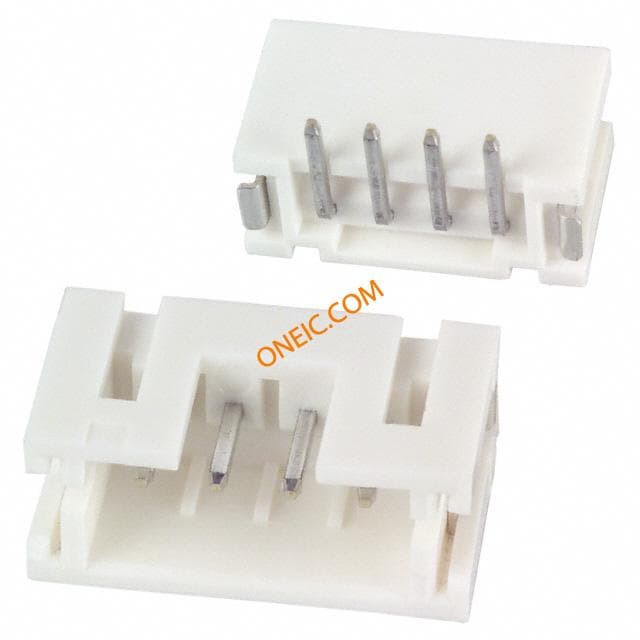

B4B-PH-SM4-TB(LF)(SN)
