点击放大查看
SHF-001T-0.8BS
| Manufacturer | |
| Description | CONN TERM CRIMP NH 22-28AWG SHF crimp contact Contact SKT Crimp ST Cable Mount Reel JST SM 系列 母 压接接线端子, 压接, 镀锡触点 |
| Category |
Business
| Other Names | 455-1121-1 | Standard Package | 5,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 20mΩ | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 250VDC/250VAC | ||
Mechanical
| Pitch | Not Required mm | Height | 3 mm |
| Packaging | Tape & Reel (TR) | Wire Gauge | 22-28 AWG |
| Termination | Crimp | Housing Color | Not Required |
| Mounting Type | Straight | Pin or Socket | Socket |
| Cable Diameter | 0.33mm² | Connector Type | 母座 |
| Contact Finish | Tin | Contact Material | Phosphor Bronze |
| Housing Material | Not Required | Length - Overall | 9 mm |
| Termination Rows | 压接 | Number of Contacts | Not Required |
| Contact Termination | Crimp | Wire Gauge or Range - AWG | 22AWG |
Product Info
| Type | Contact | Gender | Female |
| Series | SM | ||
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts
SMP-02V-BC
JST Sales America Inc
CONN SM CRIMP 2.5MM JST 2 Way 1 Row Straight Male Multiway Connector
H2P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 2POS NH
H4P-SHF-AA
JST Sales America Inc
NH CONN CRIMP STYLE 4POS 2.5MM
H5P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 5POS NH
H6P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 6POS NH

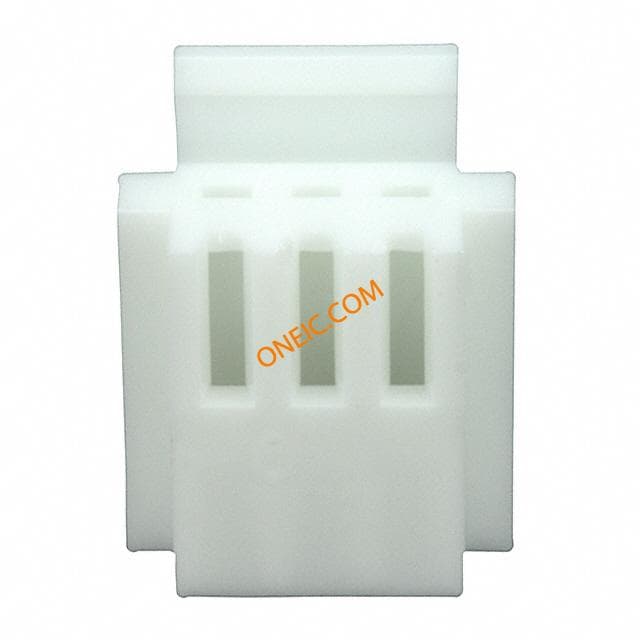

H3P-SHF-AA
JST Sales America Inc
CONN HOUSING NH 3POS 2.5MM JST NH 系列 2.5mm 节距 3 路 直 母 PCB 壳体
H7P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 7POS NH
H8P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 8POS NH
H9P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 9POS NH
H12P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 12POS NH
H14P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 14POS NH
H20P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 20POS NH
H24P-SHF-AA
JST Sales America Inc
CONN RECEPT HOUSING 24POS NH

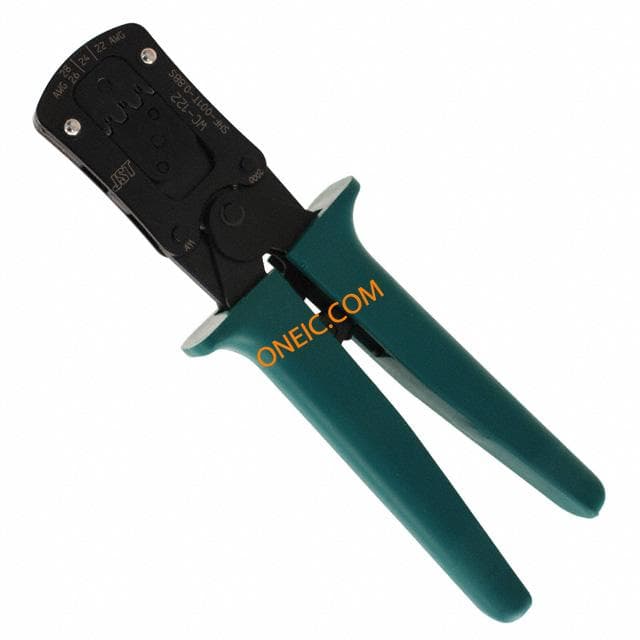

WC-122
