Business
| Standard Package | 1,000 | ||
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250V | Number of Poles | 5 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 7A |
| Insulation Resistance | 1000 MOhm | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 13.3mm |
| Pitch | 0.156" (3.96mm) | Width | 10.5mm |
| Length | 19.74mm | Weight | 0.96 g |
| Packaging | Bulk | Orientation | 直 |
| Contact Type | Female Socket | Pitch - Post | 3.96mm |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | for cable |
| Number of Rows | 1 | Connector Style | Single row |
| Locking Feature | lock | Housing Material | Polyamide (PA/Nylon) |
| Package Quantity | 100 | Connector - Cable | plug |
| Color - Connectors | white | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
| 1st Connector Gender | Female | Wire Gauge or Range - AWG | 22...16 AWG |
| 1st Connector Mounting Feature | 1x5 | ||
Product Info
| Spg | 100 | Note | Contacts Not Provided |
| Series | VH | Adapter Series | VH |
| Number of Units | 1 | Connection Method | Wire-Board |
| For Use With/Related Products | VH 系列可断开压接型连接器 | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
PDF Document
Similar Parts
SVH-21T-P1.1
JST Sales America Inc
$0.1904
Details
SVH-41T-P1.1
JST Sales America Inc
$0.2691
Details
SVH-21GH-P1.1
JST Sales America Inc
$1.6252
Details
SVH-21T-1.1
JST Sales America Inc
$0.2582
Details
B5P-VH(LF)(SN)
JST Sales America Inc
$0.5107
Details

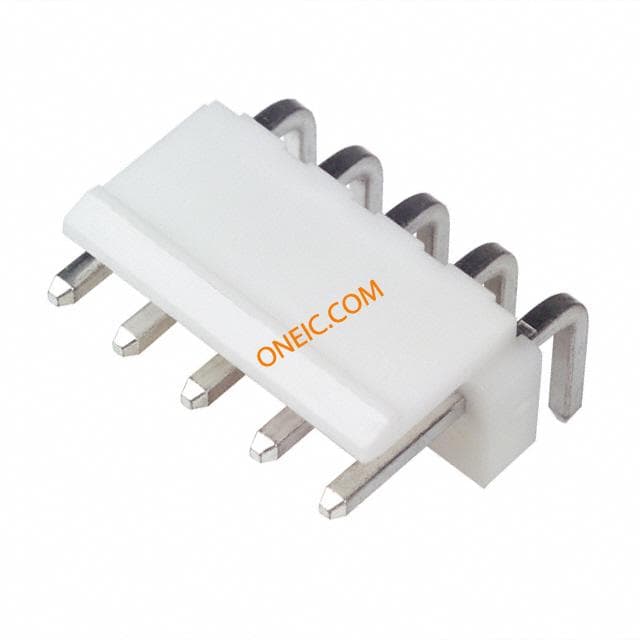

B5PS-VH(LF)(SN)
