VHR-6N
| Manufacturer | |
| Description | CONN HOUSING VH 6POS 3.96MM WHT Conn Housing PL 6 POS 3.96mm Crimp ST Cable Mount Bag Crimp housing Pitch3.96 mm Poles 6 Single row / Free hanging/cable mount VH, VHR-6N, JST |
| Category |
Business
| Standard Package | 500 | ||
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 | Number of Poles | 6 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 10 A |
| Insulation Resistance | 1000 MOhm | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Natural | Depth | 13.3 mm |
| Pitch | 0.156" (3.96mm) | Height | 10.5 mm |
| Packaging | Bulk | Wire Gauge | 16-22 |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Number of Rows | 1 |
| Connector Style | Single row | Housing Material | Polyamide 6 |
| Length - Overall | 23.7 mm | Color - Connectors | white |
| Number of Contacts | 1 | Contact Termination | Crimp |
| Number of Positions | 6 | 1st Connector Gender | Female |
| Wire Gauge or Range - AWG | 22...16 AWG | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | VH |
| Connection Method | Wire-Board | ||
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
Similar Parts
SVH-21T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG VH 3.96MM CONTACT 22-18 AWG REELED SVH-21T-P1.1 Contact; female; 0.33÷0.83mm2; VH; crimped; 3.96mm Crimp contact Female 22...18 AWG, SVH-21T-P1.1, JST JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-41T-P1.1
JST Sales America Inc
CONN TERM CRIMP VH 16-20AWG TIN VH 3.96MM CONTACT 20-16 AWG REELED Contact; female; 0.5÷1.25mm2; VH; crimped; 3.96mm JST SVH 系列 母 压接接线端子, 压接, 镀锡触点
SVH-21GH-P1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG
SVH-21T-1.1
JST Sales America Inc
CONN TERM CRIMP VH/NV 18-22AWG

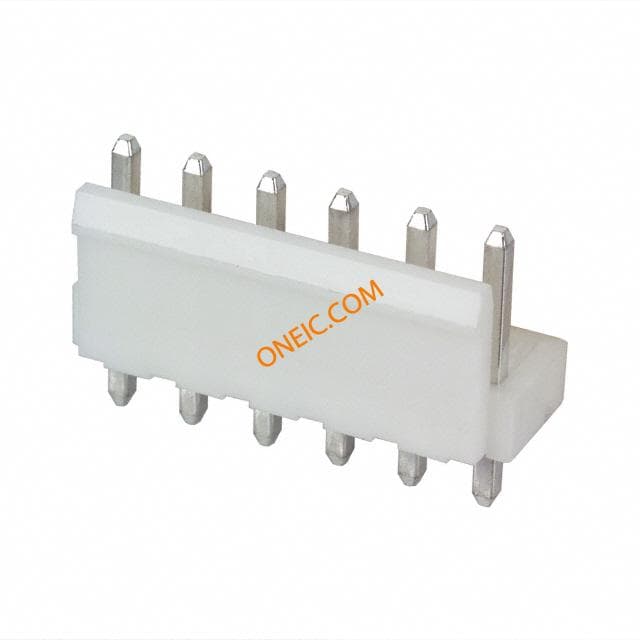

B6P-VH(LF)(SN)
JST Sales America Inc
CONN HEADER VH TOP 6POS 3.96MM JST VH Series 3.96mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 10A JST VH Series 3.96mm Pitch 6 Way 1 Row Top Entry PCB Header, Solder Termination, 10A B6P-VH(LF)(SN) JST VH 系列 3.96mm节距 6路 (1排) 顶入 PCB 针座, 焊接端接, 10A , 通孔
B6P-VH-FB-B(LF)(SN)
JST Sales America Inc
CONN HEADER 6POS 3.96MM STR

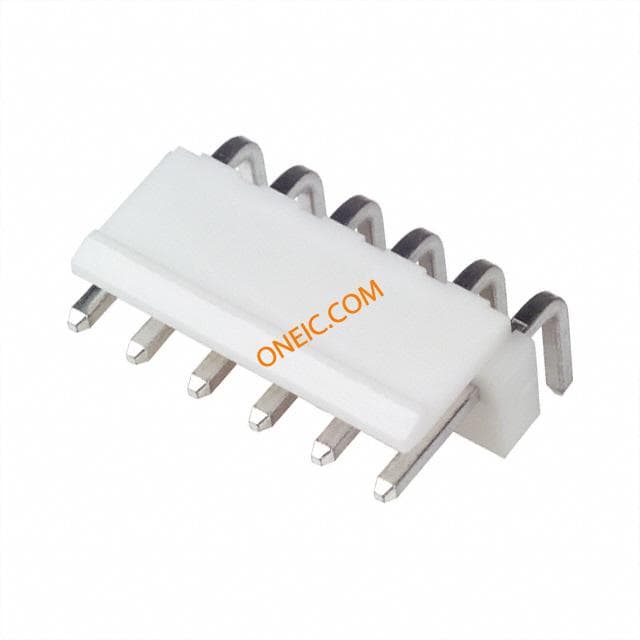

B6PS-VH(LF)(SN)
