Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 1000 | Voltage Rating | 250V |
| Number of Poles | 4 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhm |
| Voltage - Supply (Min) | 250VDC/250VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 7.75mm |
| Pitch | 0.098" (2.50mm) | Width | 5.7mm |
| Height | 5.7 mm | Length | 12.3mm |
| Weight | 0.26 g | Packaging | Bulk |
| Body Color | 12.3 | Wire Gauge | 22-30 |
| Orientation | 直 | Contact Type | Female Socket |
| Pitch - Post | 2.5mm | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Mounting Style | for cable | Number of Rows | 1 |
| Contact Material | Tin-plated phosphor bronze | Housing Material | Nylon |
| Length - Overall | 12.3 mm | Package Quantity | 500 |
| Connector - Cable | plug | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| 1st Connector Mounting Feature | 1x4 | ||
Product Info
| Spg | 500 | Note | Contacts Not Provided |
| Type | Housing | Gender | Male |
| Series | XH | DELETED | Compliant |
| Adapter Series | XH | Amplifier Type | 7.5 |
| Number of Units | 1 | Connection Method | Wire-Board |
| For Use With/Related Products | Removable crimp connector | ||
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts
SXH-001T-P0.6
JST Sales America Inc
$0.0619
Details
SXH-002T-P0.6
JST Sales America Inc
$0.1618
Details
(SN).jpg&w=3840&q=75)

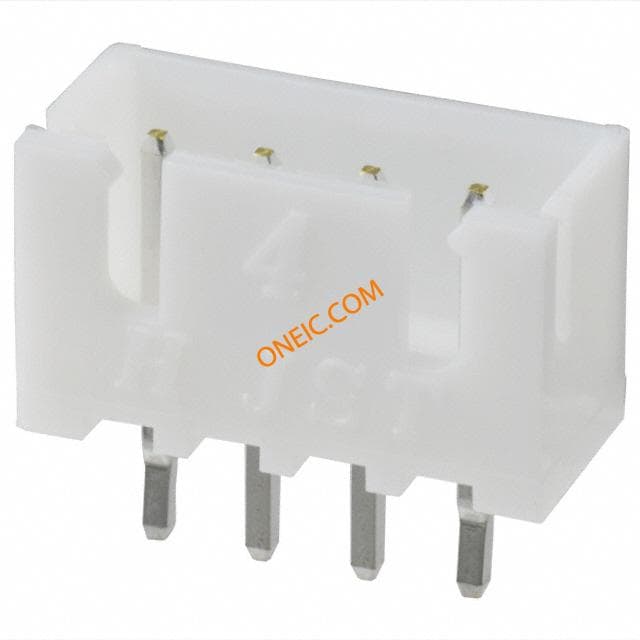

B4B-XH-A(LF)(SN)
JST Sales America Inc
$0.4094
Details
(SN)(P).JPG&w=3840&q=75)

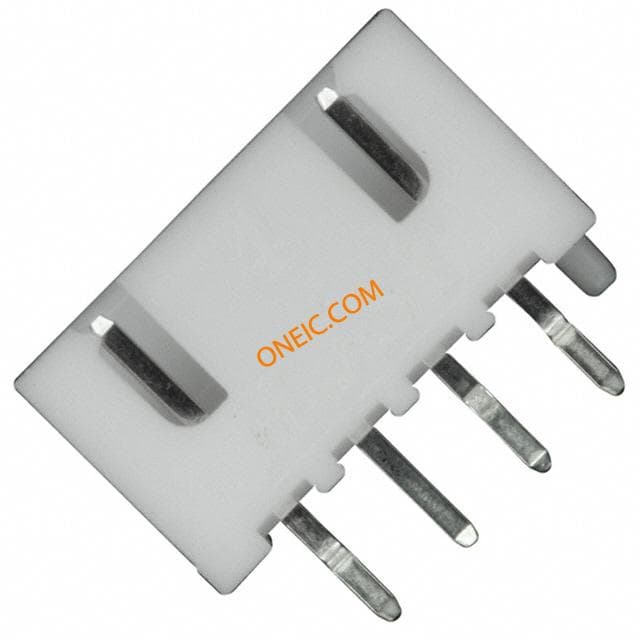

B4B-XH-AM(LF)(SN)(P)
JST Sales America Inc
$0.5934
Details
(SN).JPG&w=3840&q=75)

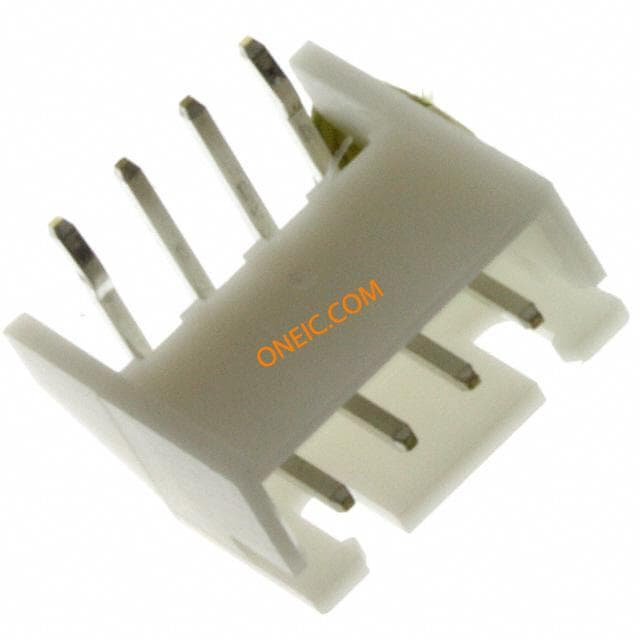

S4B-XH-A(LF)(SN)
