XHP-6

Manufacturer	JST Mfg. Co., Ltd.
Description	CONN HOUSING 2.5MM XH 6POS Crimp housing,XH,2.5mm pitch,6w Conn Housing PL 6 POS 2.5mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:6; w/o terminals; 2.5mm; for cable Crimp housing 2.5 mm Poles 6 XH, XHP-6, JST JST XHP 系列 1 行 2.5mm 节距 6 路直母电缆安装 PCB 连接器外壳
Category	OptoelectronicsDiscrete LED IndicationHardware/Accessories

对参数有疑问？问 AI 助手

Business

Standard Package

1,000

Compliance

RoHS

Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage - Test	1000	Voltage Rating	250V
Number of Poles	6	Contact Resistance	10 mOhm
Current Rating (Max)	3 A	Insulation Resistance	1000 MOhm
Voltage - Supply (Min)	250VDC/250VAC	Connector - Voltage Input	w/o terminals

Mechanical

Color	Natural	Depth	7.75mm
Pitch	0.098" (2.50mm)	Width	5.7mm
Height	5.7 mm	Length	17.3mm
Weight	0.32 g	Packaging	Bulk
Body Color	17.3	Wire Gauge	22-30
Orientation	直	Contact Form	Female Socket
Contact Type	Female Socket	Pitch - Post	2.5mm
Housing Color	White	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle	Mounting Style	for cable
Number of Rows	1	Contact Material	Tin-plated phosphor bronze
Housing Material	Nylon	Length - Overall	17.3 mm
Package Quantity	10	Connector - Cable	plug
Number of Contacts	6	Contact Termination	Crimp
Number of Positions	6	1st Connector Mounting Feature	1x6

Product Info

Spg	10	Note	Contacts Not Provided
Type	Housing	Gender	Male
Series	XH	Adapter Series	XH
Amplifier Type	12.5	Number of Units	1
Connection Method	Wire-Board	Output Configuration	Free Hanging (In-Line)
For Use With/Related Products	Removable crimp connector

Environmental

Operating Temperature

-25C to 85C

Documents & Media

PDF Document

XH Connector

Similar Parts

SXH-001T-P0.6

JST Sales America Inc

CONN TERM CRIMP XH 22-28AWG SXH-001T-P0.6 Contact; female; 0.05÷0.22mm2; 22÷28AWG; XH; crimped JST XH 系列母压接接线端子, 压接, 镀锡触点

$0.0619

Details

SXH-002T-P0.6

JST Sales America Inc

CONN TERM CRIMP XH 26-30AWG

$0.0510

Details

B6B-XH-A(LF)(SN)

JST Sales America Inc

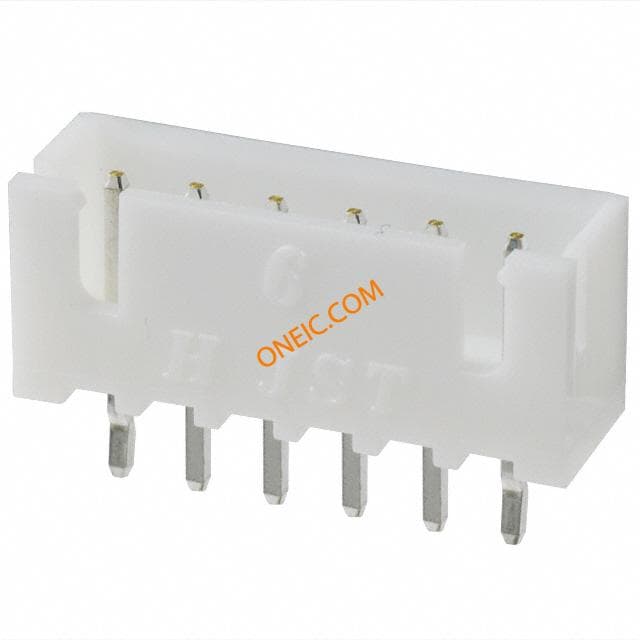

CONN HEADER XH TOP 6POS 2.5MM JST XH Series 2.5mm Pitch 6 Way 1 Row Straight PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 6 POS 2.5mm Solder ST Thru-Hole Box JST XH 系列 2.5mm节距 6路 (1排) 直 PCB 针座, 焊接端接, 3A

$0.3570

Details

S6B-XH-A(LF)(SN)

JST Sales America Inc

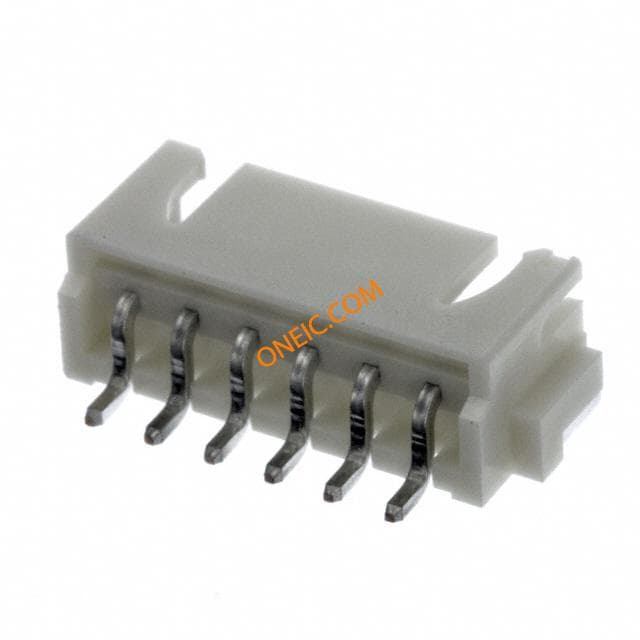

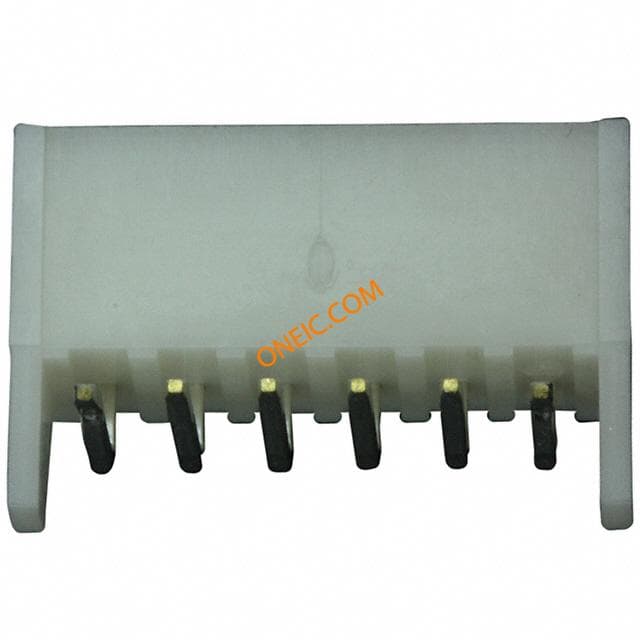

CONN HEADER XH SIDE 6POS 2.5MM JST XH Series 2.5mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 3A JST XH 系列 6路 2.5mm节距 (1排) 直角 PCB 针座 , 焊接端接, 3A, 通孔
