6221
| Manufacturer | |

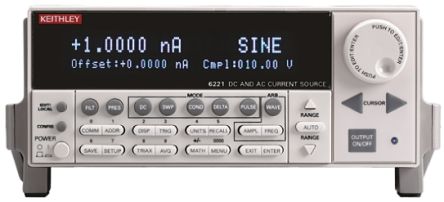

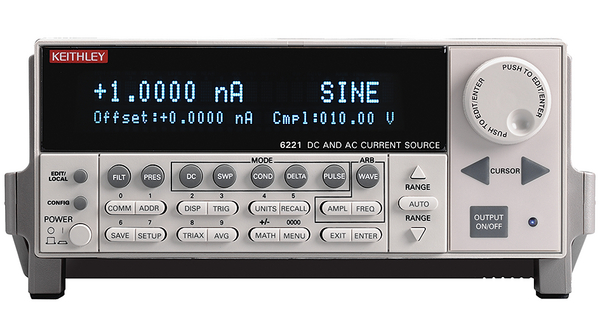

| Description | 11W 4 Output Digital Bench Power Supply, 105V, 4 pA to 210 mA Source Measure Units - SMUs AC and DC Current Source CURRENT SOURCE, AC+DC, ±2NA TO ±100MA CURRENTSOURCE,AC/DCHIGHPERFORMANCE AC/DC Current Source 1x100 kHz ARB, 6221, Keithley Keithley 台式电源, 4 输出, 105V, 4 pA → 210 mA, 11W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Source Measure Units | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85044090 |
Electrical
| Ranging | Auto | Accuracy | 0.2 %, 1 % |
| Frequency | 50 Hz to 60 Hz | Resistance | :- |
| Output Power | :11W | Power - Rated | 11W |
| Voltage Range | 100 V to 240 V | Voltage Rating | 105V |
| Current - Output | 4 pA → 210 mA | Voltage - Supply | 100 → 240V ac |
| Capacitance Range | 10 pF to 100 pF | Number of Outputs | 4 |
| Current Rating (Max) | 100 mA | Current - Output Source/Sink | :± 2nA to ± 100mA |
| Resistance - Initial (Ri) (Min) | 10 nOhms to 100 MOhms | ||
Mechanical
| Weight | 13 lbs | Input Connector | DB-9 |
| Output Connector | 3 Lug Triax Connector, Banana Jack, DB-9 | ||
Product Info
| Type | Digital | Series | 6221 |
| Function | :Current Source | ||
Environmental
| Operating Temperature | 0°C | Maximum Temperature Limit | +50°C |
Documents & Media
Online Document
Sourcing & traceability
- Datasheet
- data?asset=15911
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
