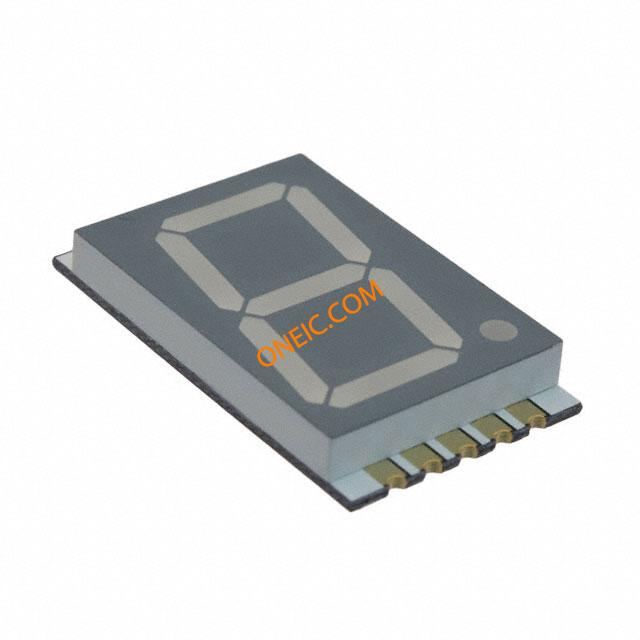

ACSC08-51SGWA
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Other Names | 754-1045-2 |
| Subcategory | LED Displays Segmented | Product Category | LED Displays & Accessories |
| Standard Package | 200 | Factory Pack Quantity | 200 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Wavelength | 568 nm | Display Type | 7 Segment |
| Luminous Flux | 7400 ucd @10mA | Current - Output | 20mA |
| Voltage - Supply | 2.2 V | Wavelength - Peak | 565nm |
| Millicandela Rating | 7.4mcd | Wavelength - Dominant | 568nm |
| Power - Average Forward | 62.5 mW | Power Dissipation (Max) | 62.5mW |
| Current - Average Rectified (Io) | 25 mA | ||
Mechanical
| Size | 0.8" | Color | Green |
| Material | GaP | Packaging | Tube |
| Common Pin | Common Cathode | Lens Color | White Diffused |
| Mounting Type | Surface Mount | Package / Case | 10-SMD, No Lead |

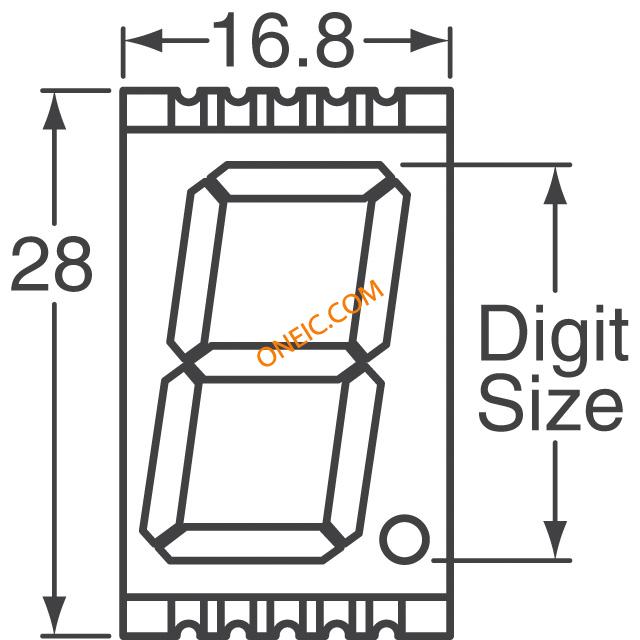

| Size / Dimension | 0.945" H x 0.661" W x 0.148" D (24.00mm x 16.80mm x 3.75mm) | Illumination Color | Green |
Product Info
| Type | Displays | Card Standard | Numeric |
| Character Size | 0.8 in | Digit/Alpha Size | 0.80" (20.32mm) |
| Digits or Characters | 1 | Number of Characters | 1 |
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 7500 ucd |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- ACSC08-51SGWA.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
