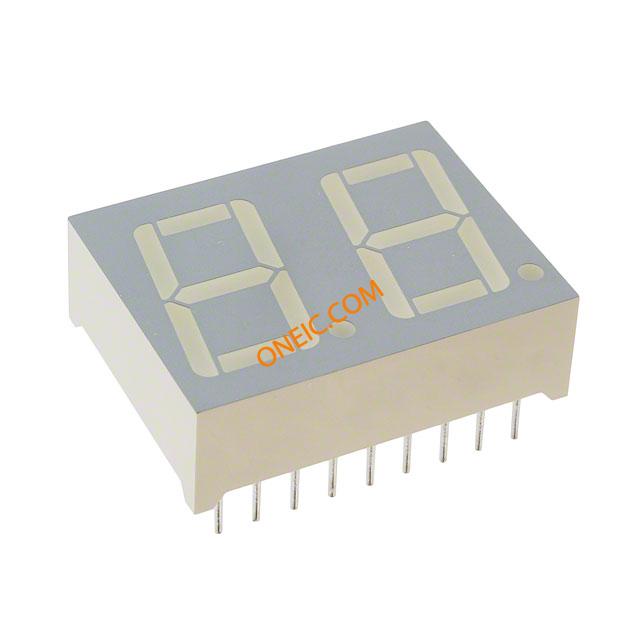

DC56-11GWA
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 46 Days | Subcategory | LED Displays Segmented |
| Product Category | LED Displays & Accessories | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Wavelength | 568 nm | Display Type | 7 Segment |
| Luminous Flux | 2-10.5mcd | Current - Output | 20mA |
| Voltage - Supply | 2.2 V | Wavelength - Peak | 565nm |
| Millicandela Rating | 11mcd | Current Rating (Max) | 10mA |
| Wavelength - Dominant | 568nm | Power Dissipation (Max) | 62.5mW |
| Current - Average Rectified (Io) | 25 mA | Voltage - Anode - Cathode (Vak)(Max) | cathode |
Mechanical
| Size | .56" | Color | Green |
| Weight | 6.8 g | Material | GaP |
| Packaging | Tube | Common Pin | Common Cathode |
| Lens Color | White Diffused | Mounting Type | THT |
| Package / Case | 18-DIP (0.600", 15.24mm) | Package Quantity | 20 |
| Size / Dimension | 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) | Pitch - Connector | 2.54mm |
| Color - Connectors | green | Illumination Color | Green |
Product Info
| Spg | 20 | Type | Displays |
| Card Standard | Numeric | Character Size | 0.56 in |
| Number of Units | 1 | Digit/Alpha Size | 0.56" (14.22mm) |
| Digits or Characters | 2 | Number of Characters | 2 |
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 10500 ucd |
Documents & Media
Sourcing & traceability
- Datasheet
- DC56-11GWA.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
