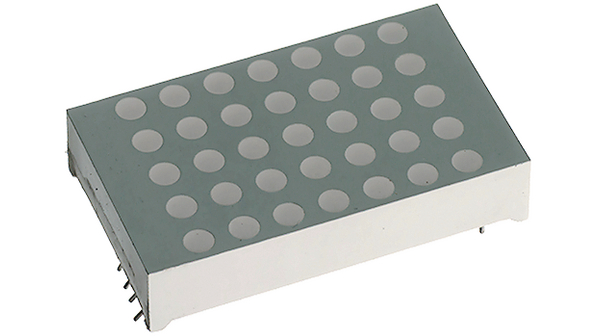

TA12-11YWA
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | LED Displays Dot Matrix |
| Product Category | LED Displays & Accessories | Standard Package | 21 |
| Factory Pack Quantity | 21 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Resolution | 5X7 | Wavelength | 588 nm |
| Display Type | 5 x 7 Dot Matrix | Luminous Flux | 13000 ucd @10mA |
| Voltage - Supply | 2.1 V | Wavelength - Peak | 590 |
| Millicandela Rating | 13mcd | Wavelength - Dominant | 588nm |
| Current - Average Rectified (Io) | 30 mA | Current - On State (It (AV)) (Max) | 20 |
Mechanical
| Size | 1.2"(30.6mm) | Color | Yellow |
| Material | GaAsP/GaP | Packaging | Tube |
| Case Color | grey | Common Pin | Common Anode |
| Lens Color | White Diffused | Light Color | yellow |
| Height (Max) | 30 | Mounting Type | Thruhole |
| Size / Dimension | 1.54" L x 0.90" W x 0.32" H (39.00mm x 22.90mm x 8.00mm) | Illumination Color | Yellow |
Product Info
| Type | Displays | Polarity | C.A. |
| Technology | GaAsP/GaP | Card Standard | Dot Matrix |
| Configuration | 5 x 7 | Character Size | 1.2 in |
| Internal Connection | Common Cathode Row, Common Anode Column | Digits or Characters | 1 |
| Matrix (Columns x Rows) | 5 x 7 dots | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 4700 ucd |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- TA12-11YWA.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
