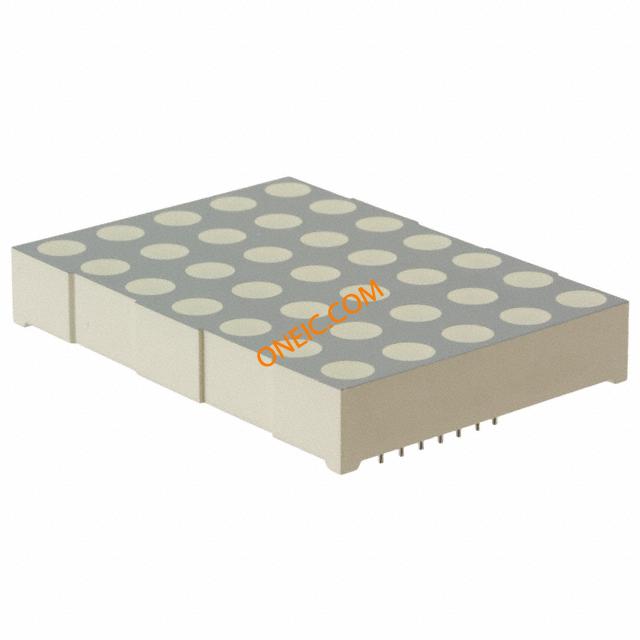

点击放大查看
TA20-11SRWA
| Manufacturer | |
| Description | LED Displays & Accessories SUPER RED DIFFUSED 5X7 DOT MATRIX LED DISPLAY DOT MATRIX 5X7 LED DISPLAY, DOT MATRIX Displays Dot Matrix Size : 2.0"(50mm) Resolution : 5X7 Color : Red Luminous Intensity (Typ.) : 48000 ucd @10mA LED dot display red 5 x 7 dots, TA20-11SRWA, Kingbright |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | LED Displays Dot Matrix |
| Product Category | LED Displays & Accessories | Standard Package | 13 |
| Factory Pack Quantity | 13 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85414010 | ||
Electrical
| Wavelength | 640 nm | Display Type | 5 x 7 Dot Matrix |
| Voltage Rating | :1.85V | Voltage - Supply | 1.85 V |
| Current - Sensing | :20mA | Wavelength - Peak | :660nm |
| LED Forward Voltage | :1.85V | Millicandela Rating | 48mcd |
| Current - DC Forward (If) (Max) | :20mA | Radiant Intensity (Ie) Min @ If | :31mcd |
| Voltage - DC Reverse (Vr) (Max) | :5V | Current - Average Rectified (Io) | 30 mA |
Mechanical
| Color | Red | Depth | :8.45mm |
| Width | :38.5mm | Length | :53.3mm |
| Weight | 0.022 | LED Color | :Red |
| Packaging | Tube | Common Pin | Common Anode |
| Lead Spacing | :2.54mm | Pitch - Post | :38.1mm |
| Width - Overall | :37.65mm | Size / Dimension | 2.09" L x 1.48" W x 0.33" H (53.00mm x 37.65mm x 8.45mm) |
| Illumination Color | Red | Display Characters - Height | :53mm |
Product Info
| Configuration | 5 x 7 | Display Style | :LED |
| Character Size | 2 in | Display Digits | :5 x 7 |
| Size - Display | :37.65mm x 53mm | Character Format | :Dot matrix |
| Internal Connection | Common Cathode Row, Common Anode Column | Digits or Characters | 1 |
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 26000 ucd |
