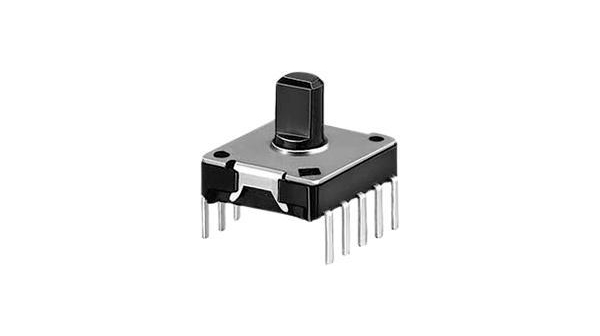

点击放大查看
MRS 12V-19
| Category |
对参数有疑问？问 AI 助手
Compliance
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Voltage - Test | 100 | Voltage Rating | 16V dc |
| Number of Poles | 1 | Voltage - Supply | 16 VDC V |
| Contact Resistance | <50 mOhm | Current Rating (Max) | 100 mA |
| Insulation Resistance | >100 MOhm | Contact Rating (Current) | 100 mA |
Mechanical
| Depth | 11.4mm | Width | 13mm |
| Height | 9.8mm | Length | 13.0 mm |
| Packaging | TRAY | Termination | THT |
| Mounting Type | PCB | Terminal Type | Through Hole |
| Contact Material | Gold | Size / Dimension | 13 x 11.4 x 9.8mm |
| Actuator Diameter | 5.8 mm | Number of Contacts | 1 |
| Number of Positions | 9 | Mounting Hole Diameter | 1 mm |
| Contact Layout, Typical | SP9T | Material - Housing & Prism | Glass Fibre Reinforced PBT |
Product Info
| Electrical Life | 10000 cycles | ||
Environmental
| Mechanical Life | 10000Operations | Operating Temperature | +80°C |
