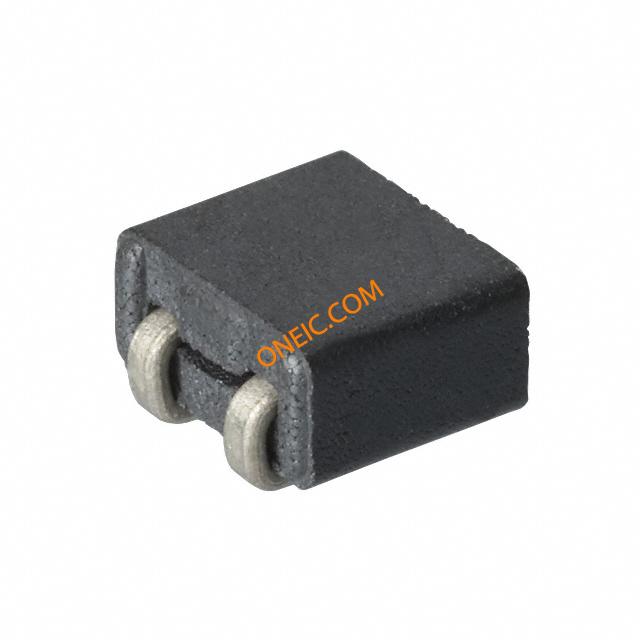

CM2021Y330R-10
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Chip Beads, Common Mode | Lead Time | 84 Days |
| Other Names | 240-2502-1 | Subcategory | Common Mode Chokes |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 5000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Current | 15A | Impedance | 33 Ohm |
| Filter Type | Power Line | Range deg/s | :(Not Available) |
| Test Frequency | 100 MHz | DC Resistance (DCR) | 0.75 mOhm Max |
| Current Rating (Max) | 15 A | Impedance @ Frequency | 33Ohms |
| DC Resistance (DCR) (Max) | :0.00075ohm | Resistance - Initial (Ri) (Min) | 750 uOhm |
Mechanical
| Depth | 5.7 mm | Width | 5.6 mm |
| Height | 3.8 mm | Weight | 0.012800 oz |
| Packaging | Tape and Reel | Shielding | Unshielded |
| Termination | SMT | Height (Max) | 0.150" (3.80mm) |
| Mounting Type | Surface Mount | Connector Type | :SMD |
| Package / Case | 5.88 X 5.7 X 3.8 | Size / Dimension | 0.231" L x 0.220" W (5.88mm x 5.60mm) |
| Termination Style | SMD/SMT | Shell Size - Insert | :2021 |

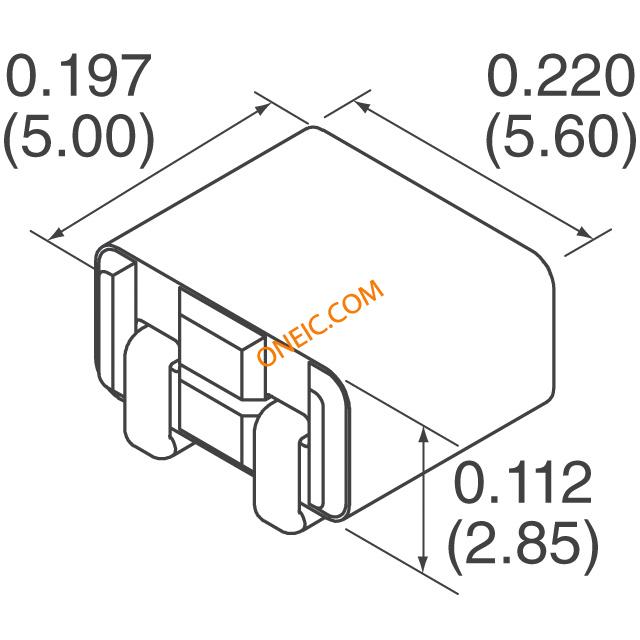

| Dimensions - Overall | :5.6mm x 2.85mm x 5mm | ||
Product Info
| Type | Common Mode Choke | Series | CM |
| Features | Common-Mode | Number of Lines | 2 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- CM2021Y330R-10-E-2.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
