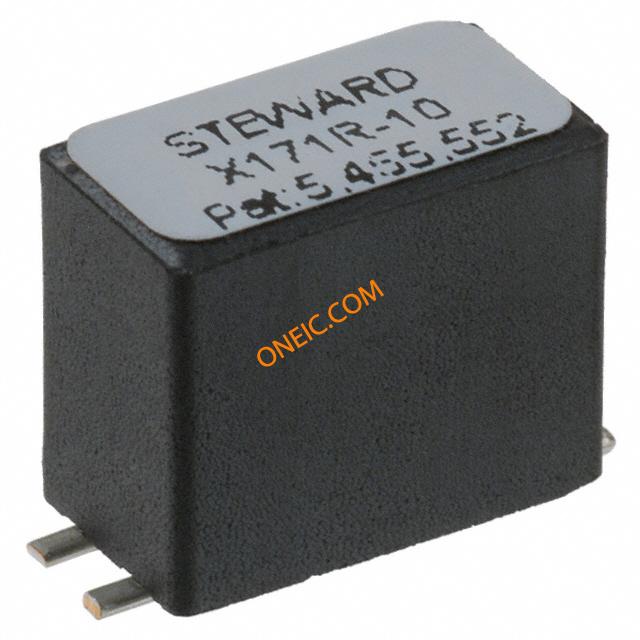

CM2545X171R-10
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Ferrite Chip Beads, Common Mode | Lead Time | 84 Days |
| Other Names | 240-2460-1 | Subcategory | Common Mode Chokes |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Cut Tape, Tape & Reel |
| Factory Pack Quantity | 400 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Current | 10A | Impedance | 170Ohm |
| Filter Type | Power Line | Range deg/s | :(Not Available) |
| Test Frequency | 100 MHz | DC Resistance (DCR) | 10 mOhm Max |
| Current Rating (Max) | 10 A | DC Resistance (DCR) (Max) | :0.01ohm |
| Resistance - Initial (Ri) (Min) | 10 mOhms | ||
Mechanical
| Width | 11.38 mm | Weight | 0.103680 oz |
| Packaging | Tape and Reel | Shielding | Unshielded |
| Height (Max) | 0.400" (10.16mm) | Mounting Type | Surface Mount |
| Connector Type | :SMD | Package / Case | Vertical, 4 Flat Lead |
| Size / Dimension | 0.448" L x 0.248" W (11.38mm x 6.30mm) | Termination Style | SMD/SMT |
| Shell Size - Insert | :2824 | Dimensions - Overall | :11.38mm x 6.3mm x 9.32mm |
Product Info
| Series | CM | Number of Lines | 2 |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- Part Number Guide
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
