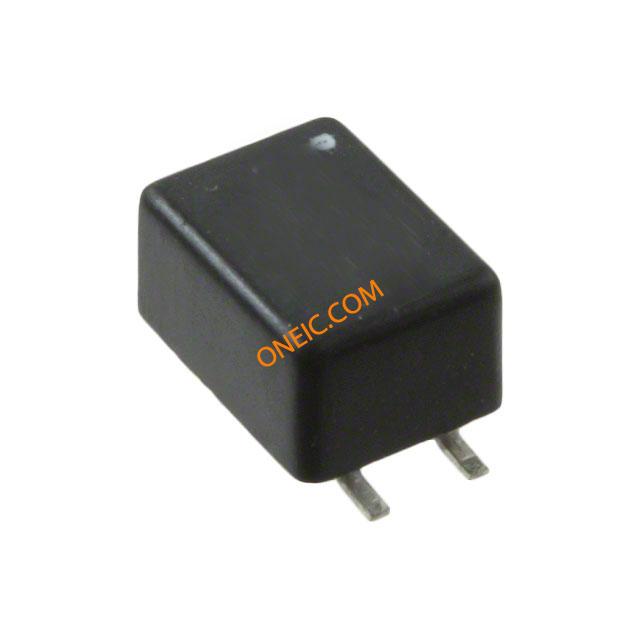

CM2824B103R-10
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Filters | Lead Time | 84 Days |
| メーカ | Laird Technologies | Other Names | 240-2572-1 |
| Subcategory | Common Mode Chokes | Product Category | EMI Filter Beads, Chips & Arrays |
| Standard Package | 1,500 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS 認証 | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Current | 200mA | Impedance | 400 Ohms |
| Filter Type | Data, Signal Line | Range deg/s | :(Not Available) |
| Test Frequency | 12500 MHz | Resistance - Input | 1.3 Ohms |
| DC Resistance (DCR) | 1.3 Ohm Max | Current Rating (Max) | 400 mA |
| DC Resistance (DCR) (Max) | :1.3ohm | Resistance - Initial (Ri) (Min) | 1.3 Ohms |
| Current - Supply (Disable) (Max) | 400 mA | ||
Mechanical
| Size | 5.5 m W x 9 mm L x 4.9 mm H | Width | 5.5 m |
| Weight | 0.009920 oz | Packaging | Tape and Reel |
| End - Size | SMD/SMT | Size - Body | 9 mm |
| Height (Max) | 4.9 mm | Mounting Type | Surface Mount |
| Connector Type | :SMD | Package / Case | Reel |
| Size / Dimension | 0.354" L x 0.217" W (9.00mm x 5.50mm) | Termination Style | SMD/SMT |

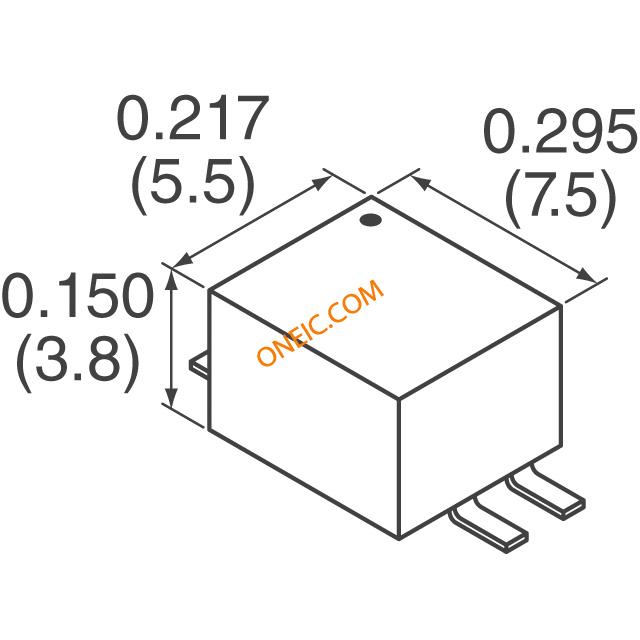

| Shell Size - Insert | :2824 | Dimensions - Overall | :7.5mm x 5.5mm x 3.8mm |
Product Info
| Series | CM | Product Type | Common Mode Filters |
| Card Standard | EMIフィルタ ビーズ、チョーク、アレイ | Number of Lines | 2 |
| Number of Units | 3000 | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | Operating Temperature - Junction | 0 C to + 125 C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- CM2824B103R-10-A-VP.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
