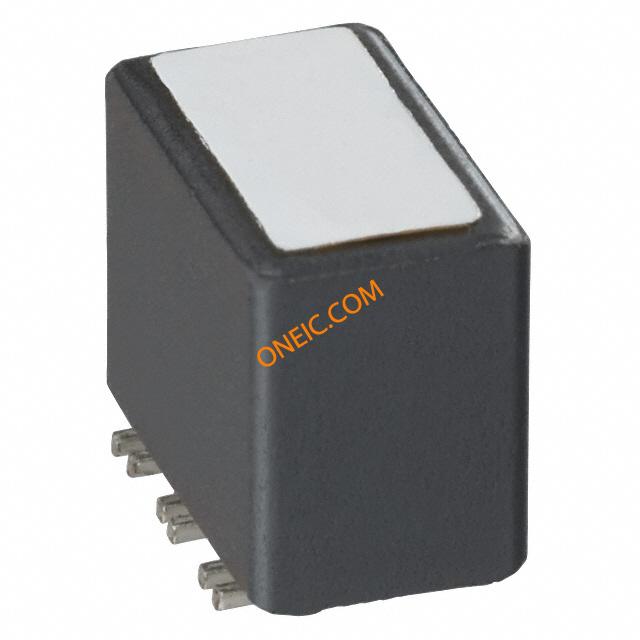

CM3822R151R-10
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Filters | Lead Time | 84 Days |
| Other Names | 240-2473-2 | Subcategory | Common Mode Chokes |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | Tape & Reel |
| Factory Pack Quantity | 600 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Current | 5A | Impedance | 150 Ohm |
| Filter Type | Power or Data Line | Range deg/s | :(Not Available) |
| Test Frequency | 100 MHz | DC Resistance (DCR) | 20 mOhm Max |
| Current Rating (Max) | 5 A | DC Resistance (DCR) (Max) | :0.2ohm |
| Resistance - Initial (Ri) (Min) | 20 mOhm | ||
Mechanical
| Depth | 5.72 mm | Height | 7.62 mm |
| Weight | 0.064320 oz | Packaging | Tape and Reel |
| Height (Max) | 0.301" (8.40mm) | Mounting Type | Surface Mount |
| Connector Type | :SMD | Number of Pins | :12 |

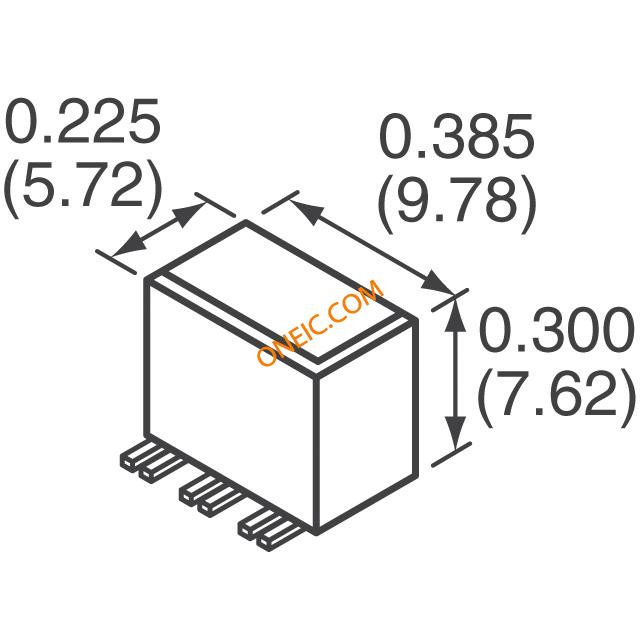

| Package / Case | 9.78 X 5.72 X 7.62 | Size / Dimension | 0.385" L x 0.265" W (9.78mm x 6.73mm) |
| Termination Style | SMD/SMT | Shell Size - Insert | :3822 |
| Dimensions - Overall | :9.78mm x 5.72mm x 7.62mm | ||
Product Info
| Type | Common Mode | Number of Lines | 6 |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- Part Number Guide
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
