28A2307-0A2
| Manufacturer | |
| Description | EMI/RFI サプレッサおよびフェライト CLAMP-ON FILTER BLK 183 Ohms 100MHz FERRITE EMI SPLIT/SNAP-ON CORE Ferrite Clamp On Cores CLAMP-ON FILTER BLK 183 Ohms 100MHz EMIFerriteSplitSnap-OnCore,MaxID0.276In,183Ohms@100MHz,Broadband |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 240-2601 | Product Category | Ferrite Clamp On Cores |
| Standard Package | 648 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 183 Ohm | Test Frequency | 100MHz |
| Impedance @ Frequency | 183Ohms | Impedance - Primary (Ohms) | 92Ohms |
Mechanical
| Color | BlackCase | Shape | Round |
| Length | 0.590" L (15.00mm) | Material | 28 |
| Packaging | Bulk | Termination | Cable |
| Core Material | 28 | Mounting Type | Free Hanging |

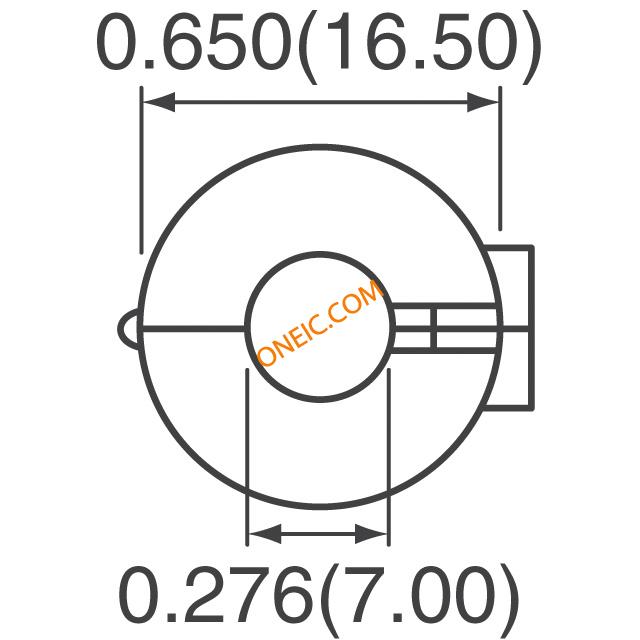

| Cable Diameter | 0.276" | Inner Dimension | 0.276" Dia (7.00mm) |

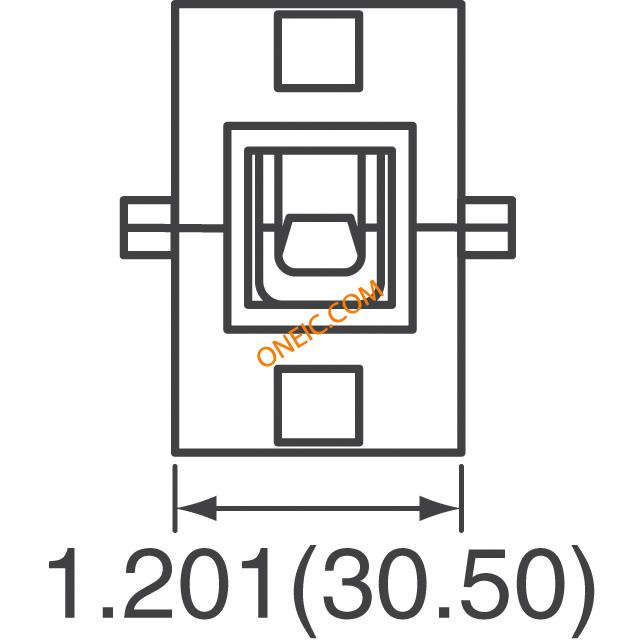

| Outer Dimension | 0.650" Dia (16.50mm) | Length - Overall | 30.5 mm |
| Diameter - Inside | 7 mm | Diameter - Outside, Non-Expanded | 16.5 mm |
Product Info
| Type | Round | Design | Hinged (Snap On) |
| Features | BlackPlasticSnap-OnCase | Product Type | Cable Single |
