28A2738-0A0
| Manufacturer | |
| Description | EMI/RFI サプレッサおよびフェライト CLAMP-ON FILTER BLK 233 Ohms 100MHz FERRITE EMI SPLIT/SNAP-ON CORE Ferrite Clamp On Cores CLAMP-ON FILTER BLK 233 Ohms 100MHz |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 240-2602 | Product Category | Ferrite Clamp On Cores |
| Standard Package | 350 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Impedance | 233 Ohm | Test Frequency | 100MHz |
Mechanical
| Shape | Round | Length | 0.590" L (15.00mm) |
| Material | 28 | Packaging | Bulk |
| Core Material | 28 | Mounting Type | Free Hanging |

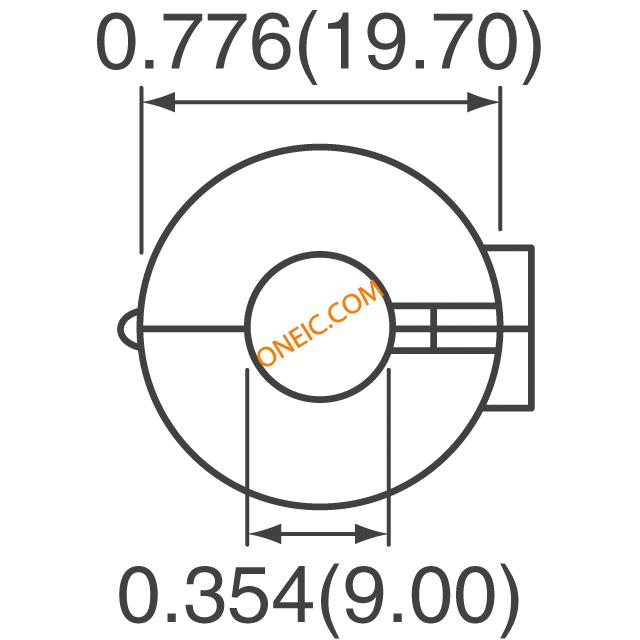

| Inner Dimension | 0.354" Dia (9.00mm) | Outer Dimension | 0.776" Dia (19.70mm) |

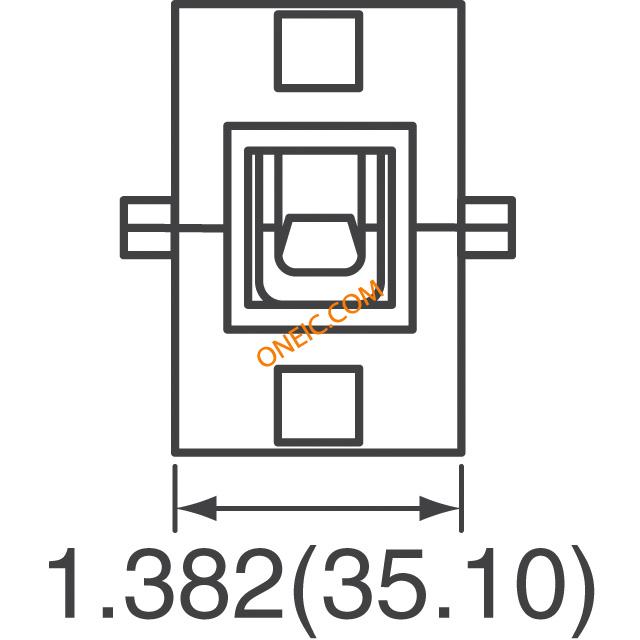

| Width - Overall | 19.7 mm | Length - Overall | 35.1 mm |
| Diameter - Inside | 9 mm | Diameter - Outside, Non-Expanded | 18 mm |
Product Info
| Type | Round | Design | Hinged (Snap On) |
| Product Type | Cable Single | ||
