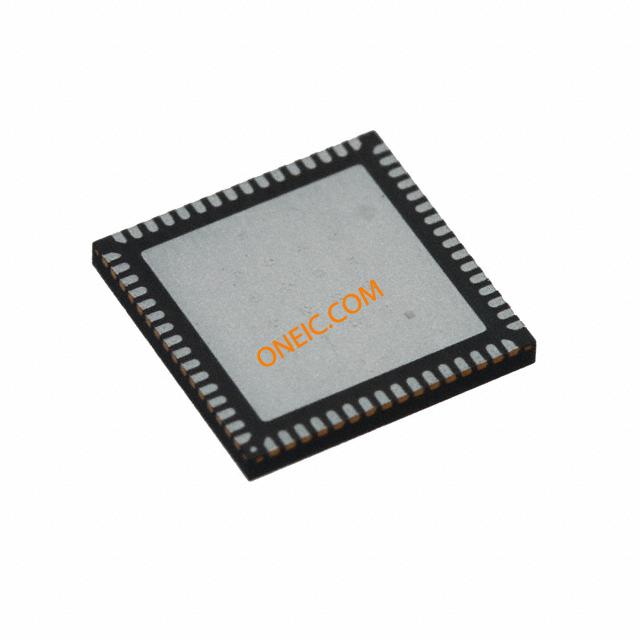

ISPPAC-CLK5410D-01SN64I
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 260 | Factory Pack Quantity | 800 |
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
Electrical
| PLL | Yes with Bypass | Input | HCSL, HSTL, LVDS, LVPECL, MLVDS, SSTL |
| Output | HCSL, HSTL, LVDS, LVPECL, MLVDS, SSTL | Current Ratio | 2:10 |
| Frequency - Max | 400 MHz | Frequency Range | 12.5 MHz to 400 MHz |
| Oscillator Type | Yes/No | Current - Output | 99 mA |
| Voltage - Supply | 3.6 V | Divider/Multiplier | Yes/No |
| Number of Elements | 1 | Ratio - Input:Output | 2:10 |
| Voltage - Supply (Min) | 3 V | Minimum Input Frequency | 40 MHz |
| Differential - Input:Output | Yes/Yes | ||
Mechanical
| Height | 0.88 mm | Length | 9 mm |
| Packaging | Tray | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | QFN-64 |
| Package Cooled | QFN EP | Package Quantity | 260 |
| Number of Positions | 64 | Supplier Device Package | 64-QFNS (9x9) |
Product Info
| Type | Zero Delay Programmable PLL Clock Generator | Series | CLK5410D-01SN |
| DELETED | Compliant | Manufacturer | Lattice |
| Programmable | Yes | Number of Circuits | 1 |
| Other Specifications | 40 MHz | Output Configuration | Surface Mount |
Environmental
| Operating Temperature | + 100 C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- DS1025.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
