点击放大查看

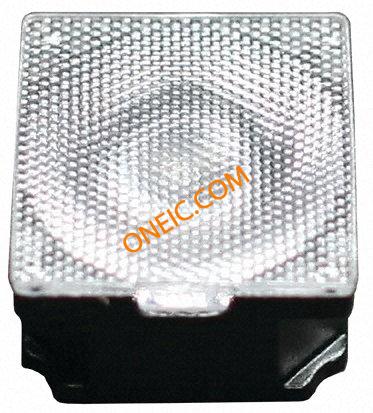

FA10313_SSS-M

Manufacturer	LEDiL Oy
Description	Lens From Material Optical Grade PMMA With High UV And Temperature Resistance LENS FOR SEOUL P4 Seoul Semi P4 Optic,Tape Base,Medium LED Lighting Lenses with Holder P4 LED SNGL LENS HLDR & TAPE LEDiL Rose 系列 29 ° 中角度 LED 透镜 , 使用于Seoul P4
Category	光电子学光学元件

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Tape

工厂包装数量

1920

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

LED	1	输出端	中角度
视角	30°	光谱范围	透明
光学模式	Medium

机械参数

颜色	Clear	形状	Square
宽度	21.6 mm	高度	14.9 mm
长度	21.6 mm	安装类型	Adhesive
安装样式	Adhesive	透镜样式/尺寸	Square with Flat Top, 21.60mm
尺寸/外形	21.6 x 21.6 x 14.3mm

产品信息

类型	Lens	样式	Clear
系列	Rose	光学元件形状	正方形
套件内容	支架、透镜	LED数量	1
其他规格	Medium Angle	适用产品/相关产品	Seoul P4

Documents & Media

PDF Document

SSS Square Lenses
