LAX 100-NP
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 12 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Output | Ratiometric, Current | Accuracy | ±0.91% |
| Frequency | DC ~ 300kHz | Linearity | ±0.1% |
| Tolerance | ±0.91% | Sensitivity | 0.5mA/A |
| Sensor Type | Closed Loop Hall Effect | Current Ratio | 50 mA |
| Response Time | 100ns | Current - Supply | 62mA |
| Voltage - Supply | ±11.4 V ~ 15.75 V | Current - Sensing | 100A |
| Number of Channels | 1 | Voltage - Secondary | 3.5 kV |
| Current - Input Bias | 100A | Voltage - Supply (Min) | ±11.4...15.75 V (±5%) |
Mechanical

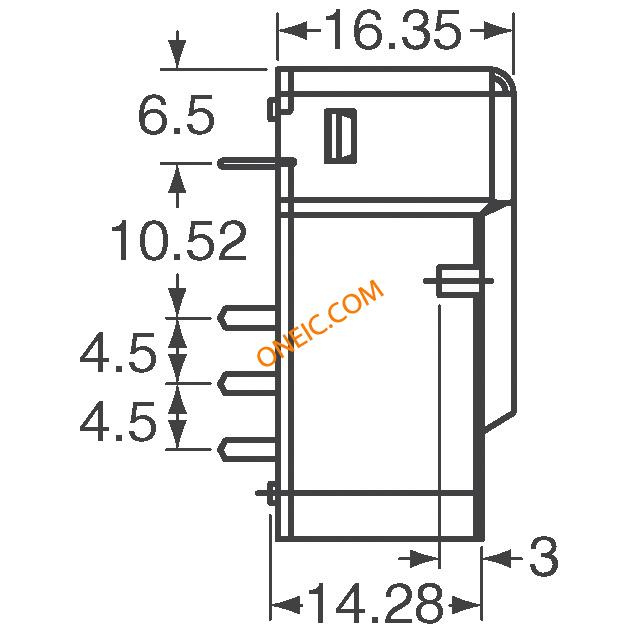

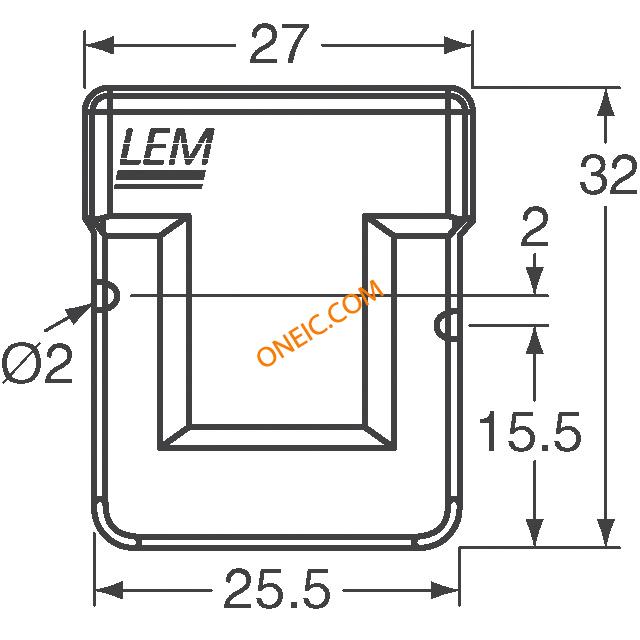

| Size | 32 x 27 x 16.35 mm | Height | 16.35 |
| Length | 32 | Bandwidth | DC...300 kHz |
| Packaging | Tube | Polarization | Bidirectional |
| Mounting Type | Through Hole | ||
Product Info
| Series | LAX | Polarity | Bidirectional |
| For Measuring | AC/DC | Measuring Range | ±160 A |
| Output Configuration | Through Hole | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- LAX 100-NP
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
