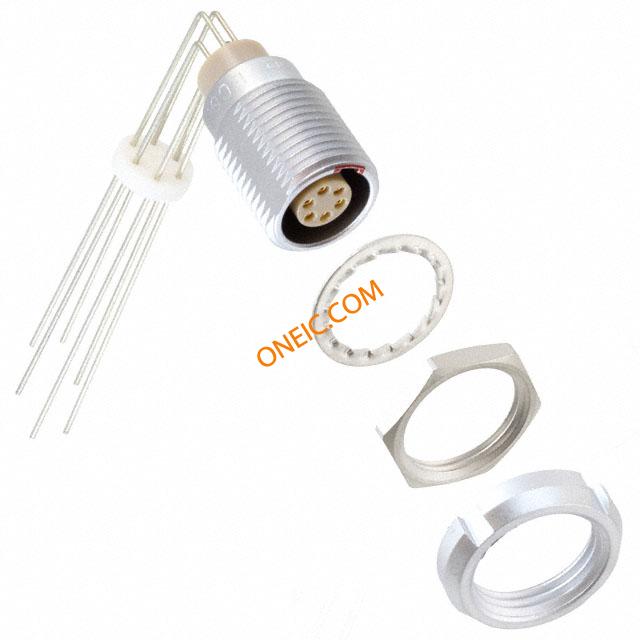

ECG.1B.306.CLV
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :660V | Contact Resistance | :5.6mohm |
| Dielectric Strength | :19V/m | Current Rating (Max) | 6A |
Mechanical
| Weight | 0.006 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder | Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle |
| Shell Plating | Chrome | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Plating - Body | :Nickel |
| Shell Material | Metal | Insertion Angle | :- |
| Material - Body | :Brass | Contact Material | :Bronze |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | :Solder |
| Number of Positions | 6 | Shell Size - Insert | 306 |
| Shell Material, Finish | Brass, Chrome Plated | Contact Material - Mating | :Bronze |
| 1st Connector Mounting Type | :Panel | Contact Finish - Post (Mating) | :Gold |
Product Info
| Gender | :Receptacle | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
PDF Document
PDF Document
PDF Document
