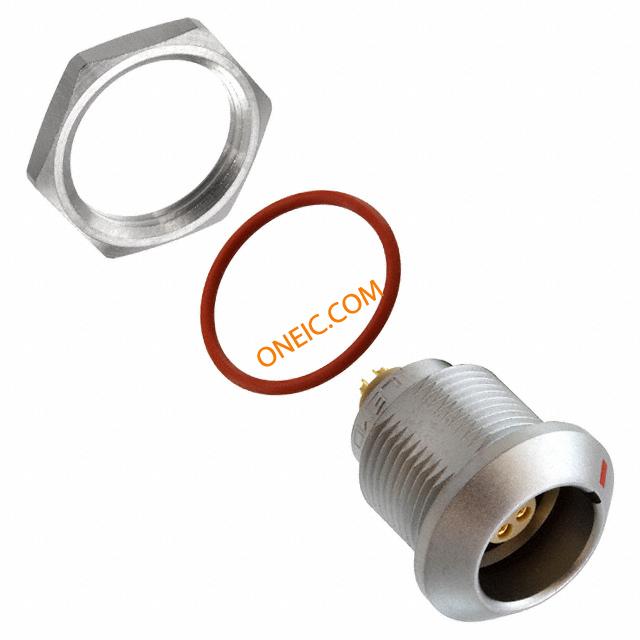

EGG.1K.304.CLL
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 37 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Contact Resistance | :3.6mohm | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.018 | Packaging | Bulk |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Weight (g): | 8.80000 |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Plating - Body | :Chrome |
| Insertion Angle | :- | Material - Body | :Brass |
| Contact Material | :- | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Contact Termination | :Solder | Number of Positions | 4 |
| Shell Size - Insert | 304 | Shell Material, Finish | Brass, Chrome Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | :Receptacle | Series | K |
| Features | Shielded | Product Type | Connectors |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP66 |
| Ingress Protection | IP66/68 - Dust Tight, Water Resistant, Waterproof | Operating Temperature | -55°C ~ 200°C |
Documents & Media
Sourcing & traceability
- Datasheet
- EGG.1K.304.CLL
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
