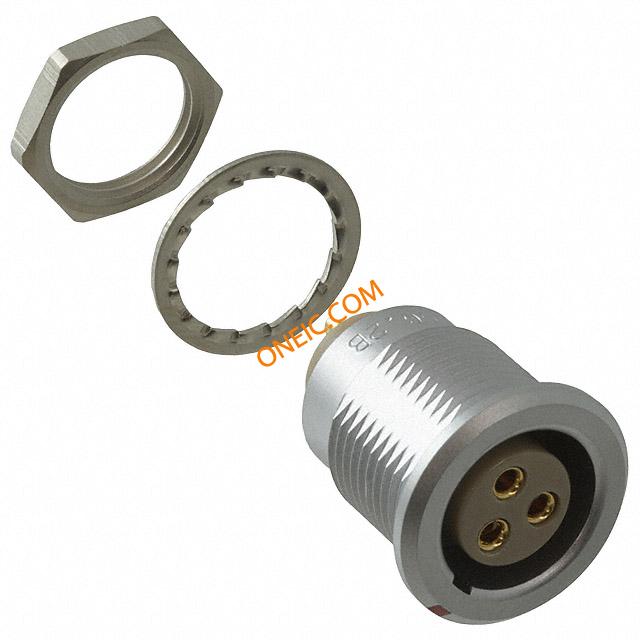

EGG.2B.303.CLL
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 10 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 17A | ||
Mechanical
| Weight | 0.015 | Packaging | Bulk |
| Wire Gauge | 18, 16 | Orientation | G |
| Shell Style | Receptacle | Termination | Solder Cup |
| Weight (g): | 8.80000 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Plating - Body | :Chrome |
| Shell Material | Metal | Insertion Angle | :303 |
| Material - Body | :Brass | Contact Material | :- |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 3 | Contact Termination | :Solder |
| Number of Positions | 3 | Shell Size - Insert | 303 |
| Shell Material, Finish | Brass, Chrome Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
