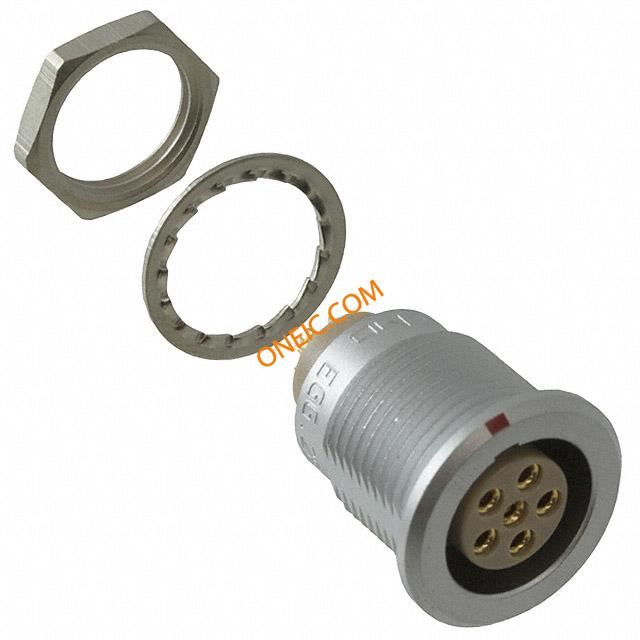

EGG.2B.306.CLL
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 12A | ||
Mechanical
| Weight | 0.015 | Packaging | Bulk |
| Wire Gauge | :20AWG | Orientation | G |
| Shell Style | Receptacle | Termination | Solder Cup |
| Weight (g): | 8.80000 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome Plated | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Plating - Body | :Chrome | Insertion Angle | :306 |
| Material - Body | :Brass | Contact Material | :Bronze |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Contact Termination | :Solder |
| Number of Positions | 6 | Shell Size - Insert | 306 |
| Shell Material, Finish | Brass, Chrome Plated | 1st Connector Mounting Type | :Panel |
Product Info
| Gender | :Receptacle | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
Sourcing & traceability
- Datasheet
- EGG.2B.306.CLL
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
