点击放大查看

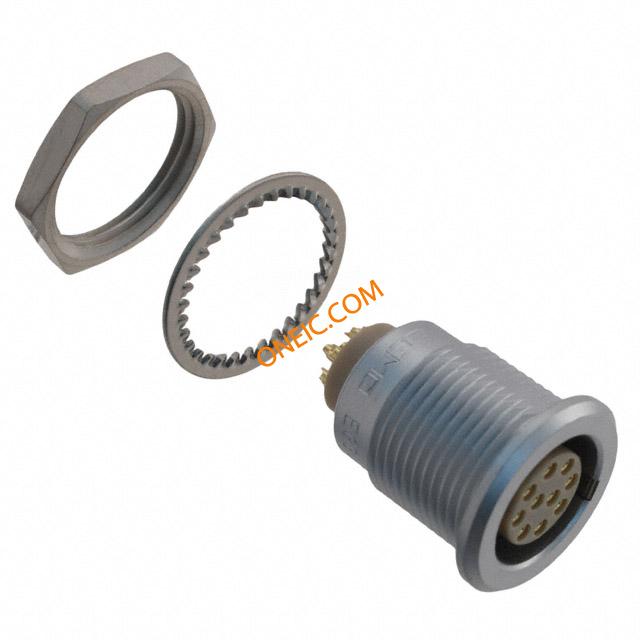

EGG.2B.310.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors RECP SIZE 2 10-PIN FEMALE SLDR CONN PNL MNT RCPT 10SKT SLD CUP 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, PANEL, 10WAY Lemo 2B 系列 10路 面板安装 直向 连接器 插座 |
| Category |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 最大额定电流 | 8A | ||
机械参数
| 重量 | 0.015 | 包装方式 | Bulk |
| 导线线规 | :22AWG | 方向 | G |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 重量（g） | 8.80000 | 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 外壳镀层 | Chrome Plated | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Push-Pull |
| 壳体镀层 | :Chrome | 插入角度 | :310 |
| 本体材料 | :Brass | 触头材料 | :Bronze |
| 端接样式 | Solder | 第一触头极性 | Female |
| 触点数 | 10 | 接触件端接 | :Solder |
| 位数 | 10 | 外壳尺寸-插件 | 310 |
| 外壳材料及表面处理 | Brass, Chrome Plated | 第一连接器安装类型 | :Panel |
产品信息
| 连接器性别 | Female | 系列 | B |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 插拔次数 | :5000 | NEMA 机架尺寸 | :IP50 |
| 防护等级 | IP50 - Dust Protected | 工作温度 | -55°C ~ 250°C |
Documents & Media
相关型号
BRR.2S.200.PZSG
LEMO
Circular Push Pull Connectors SPRING LOAD RECEP PNL MNT DUST CAP CONN SPRING CAP 2S-2B-2C-2G IP50 DUST CAP, GREY

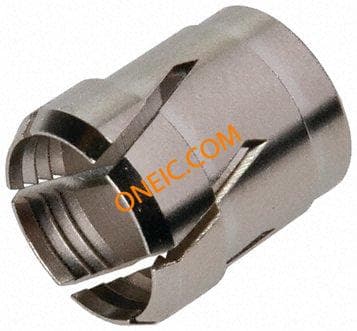

FGG.2B.762.DN
LEMO
Circular Push Pull Connectors 5.2mm to 6.2mm Collet for 2B COLLET FGG.2B. - 6.2MM DIA 2B cable plug & socket collet,5.1 to 6mm COLLET, 5.1 - 6MM Lemo 电缆垫圈

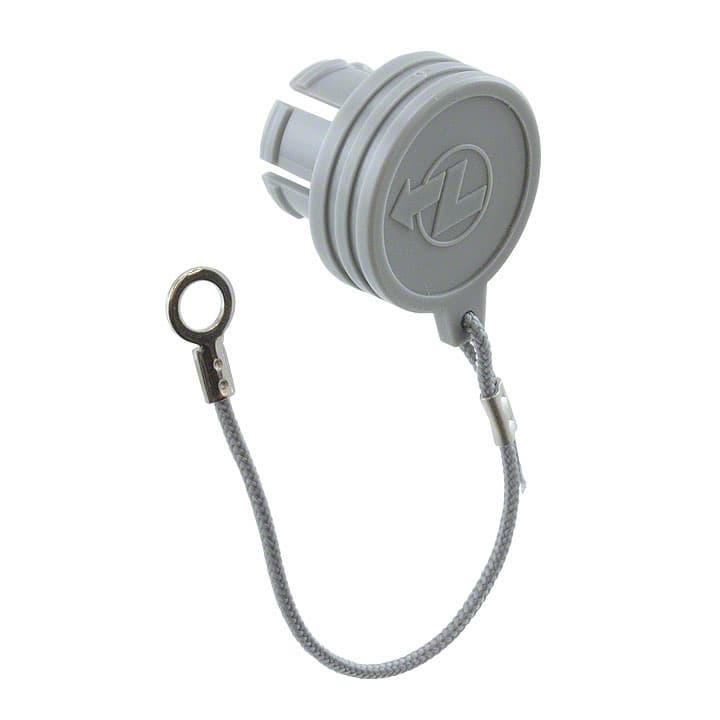

BRA.2B.200.PCSG
