点击放大查看

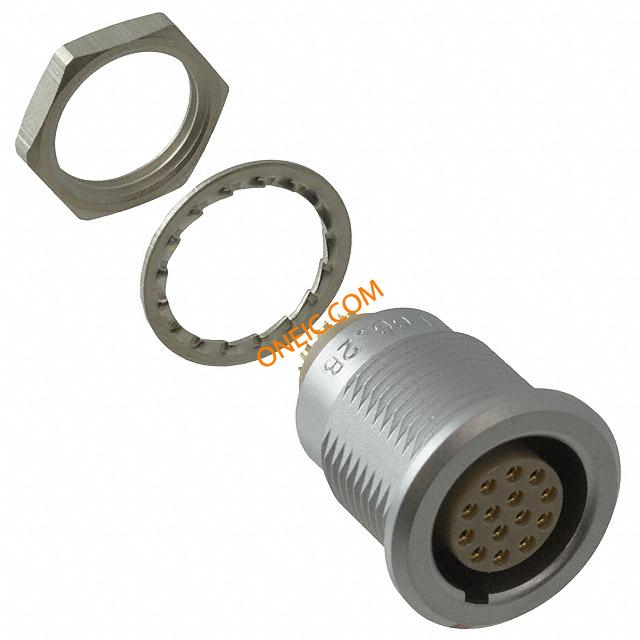

EGG.2B.314.CLL
| Manufacturer | |
| Description | Circular Push Pull Connectors 14P STRAIGHT FEMALE PNL MNT SOLDER CONN PNL MNT RCPT 14SKT SLD CUP 14 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts SOCKET, PANEL, 14WAY Lemo 2B 系列 14路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 25 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 最大额定电流 | 6.5A | ||
机械参数
| 重量 | 0.015 | 包装方式 | Bulk |
| 导线线规 | 22 | 方向 | G |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 外壳镀层 | Chrome |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Push-Pull | 安装样式 | Panel |
| 壳体镀层 | :Chrome | 外壳材料（壳体） | Metal |
| 插入角度 | :- | 本体材料 | :Brass |
| 触头材料 | :Bronze | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 14 |
| 接触件端接 | :Solder | 位数 | 14 |
| 外壳尺寸-插件 | 314 | 外壳材料及表面处理 | Brass, Chrome Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 连接器性别 | Female | 系列 | B |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| 插拔次数 | :5000 | NEMA 机架尺寸 | :IP50 |
| 防护等级 | IP50 - Dust Protected | 工作温度 | -55°C ~ 250°C |
Documents & Media
