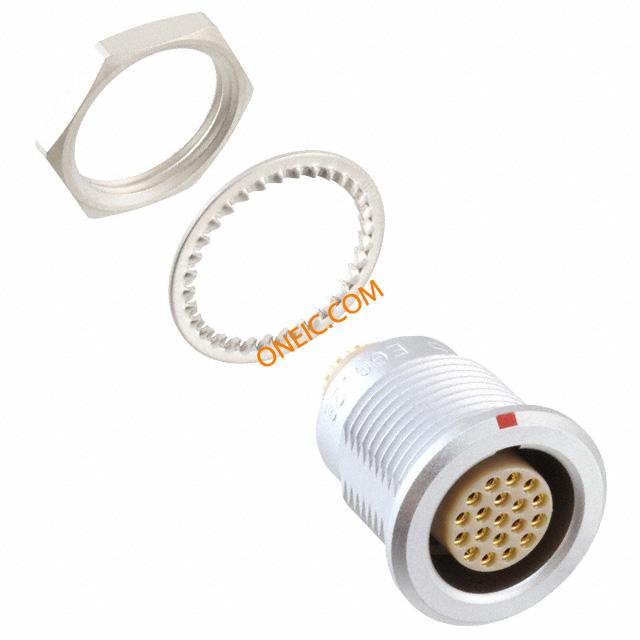

EGG.2B.319.CLL
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 10 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Weight | 0.015 | Packaging | Bulk |
| Wire Gauge | :22AWG | Orientation | G |
| Shell Style | Receptacle | Termination | Solder Cup |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Chrome Plated |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Plating - Body | :Chrome |
| Insertion Angle | :- | Material - Body | :Brass |
| Contact Material | :Bronze | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 19 |
| Contact Termination | :Solder | Number of Positions | 19 |
| Shell Size - Insert | 319 | Shell Material, Finish | Brass, Chrome Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | Female | Series | B |
| Features | Shielded | Product Type | Connectors |
Environmental
| Mating Cycles | :5000 | NEMA Frame Size | :IP50 |
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
Sourcing & traceability
- Datasheet
- EGG.2B.319.CLL
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
