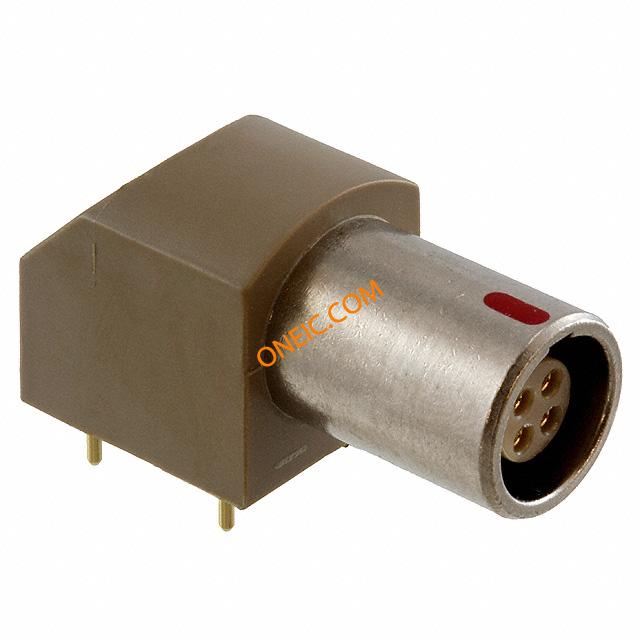

EPG.0B.304.HLN
| Manufacturer | |
| Description | Circular Push Pull Connectors 4P FEMALE PCB MNT R/A SOLDER CONN R/A PCB RCPT 4SKT 4 Pole Female Right Angle Through Hole Industrial & Automation Circular Connector with Female Contacts SOCKET, R/A, 0B, 4WAY 4POLE0B/EPGPCBSKT Device socket, B-series 3-pin Poles=4, EPG.0B.304.HLN, Lemo Lemo 0B 系列 4路 通孔 直角 连接器 插座 , 母触点 |
| Category |
商业参数
| 交货时间 | 23 Days | 子类别 | Connector Circular |
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 工作电压 | :280V | 最大额定电流 | 4.5A |
机械参数
| 重量 | 0.008 | 包装方式 | Bulk |
| 方向 | G | 外壳样式 | Receptacle |
| 端接方式 | Solder | 重量（g） | 8.80000 |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 紧固类型 | Push-Pull |
| 安装样式 | Through Hole | 外壳材料（壳体） | Plastic |
| 插入角度 | :- | 本体材料 | :Brass |
| 触头材料 | Beryllium Copper | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 4 |
| 接触件端接 | :Solder | 位数 | 4 |
| 外壳尺寸-插件 | 304 | 外壳材料及表面处理 | Polyphenylene Sulfide (PPS) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 连接器性别 | Female | 系列 | B |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP50 | 防护等级 | IP50 - Dust Protected |
| 工作温度 | -55°C ~ 250°C | ||
