点击放大查看

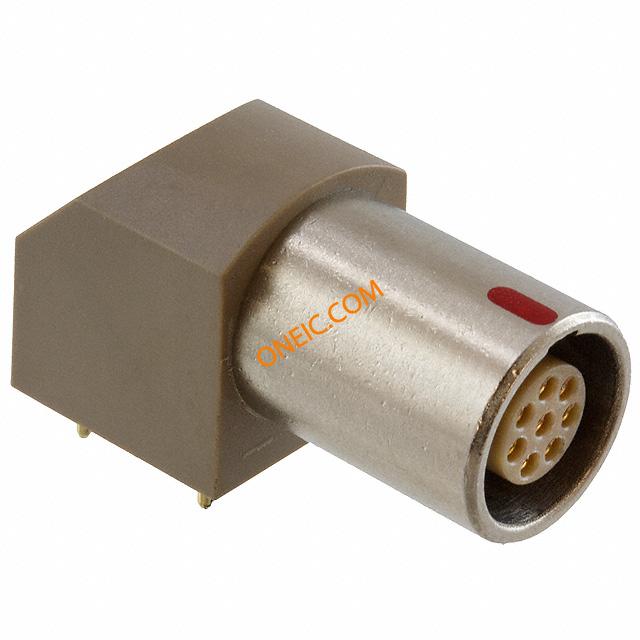

EPG.1B.308.HLN
| Manufacturer | |
| Description | Circular Push Pull Connectors RECPT 900F.PCB 8 CTS CONN R/A PCB RCPT 8SKT SOCKET, R/A, PCB, 1B, 8WAY |
| Category |
商业参数
| 产品类别 | Circular Push Pull Connectors | 标准包装数量 | 25 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| 最大额定电流 | 2 A | ||
机械参数
| 重量 | 0.012 | 包装方式 | Bulk |
| 方向 | G | 外壳样式 | Receptacle |
| 端接方式 | Solder | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 紧固类型 | Push-Pull | 安装样式 | Through Hole |
| 外壳材料（壳体） | Plastic | 插入角度 | :- |
| 本体材料 | :Brass | 触头材料 | :Bronze |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 8 | 接触件端接 | :Solder |
| 位数 | 8 | 外壳尺寸-插件 | 308 |
| 外壳材料及表面处理 | Polyphenylene Sulfide (PPS) | 第一连接器安装类型 | :PCB |
产品信息
| 连接器性别 | :Socket | 系列 | B |
| 产品特性 | Shielded | 产品子类型 | Connectors |
环境参数
| NEMA 机架尺寸 | :IP50 | 防护等级 | IP 50 |
| 工作温度 | -55°C ~ 250°C | ||
