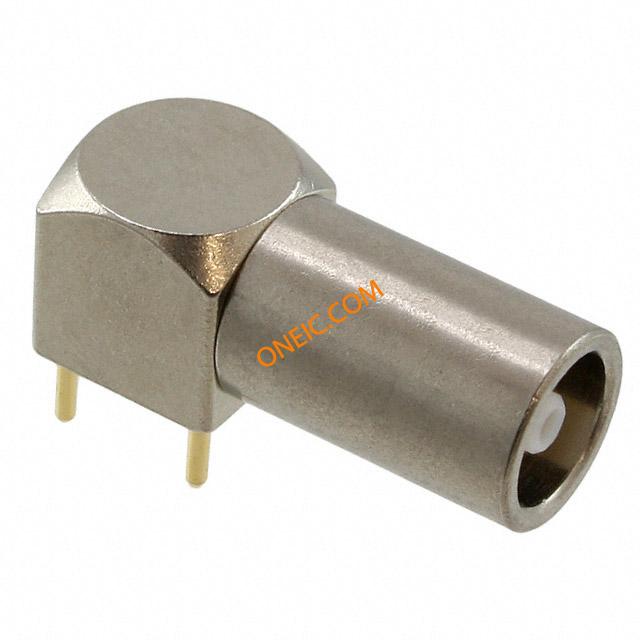

EPL.00.250.NTN
| Manufacturer | |
| Description | RF Connectors RA PC/MNT 50 OHM NIM-CAMAC CONN. CONN JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors RA PC/MNT 50 OHM NIM-CAMAC CONN. SOCKET, 00, RIGHT ANGLE, PCB, 50OHM HF-device socket, NIM-CAMAC 50 Ohm, EPL.00.250.NTN, Lemo |
| Category |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85369010 | ||
电气参数
| VSWR | :1.09 | 阻抗 | 50 Ohm |
| 额定电压 | 700V | 工作电压 | :0.7kV |
| 接触电阻 | :5.6mohm | 最大额定电流 | :4A |
| 绝缘电阻 | :1012ohm | 阻抗 - 不平衡/平衡 | :RG174,RG179,RG188 |
机械参数
| 重量 | 0.004 | 材料（通用） | :Brass (UNS C 38500) |
| 包装方式 | Bulk | 电缆类型 | :RG174/U, RG179/U, RG188/U, RG316/U |
| 本体表面处理 | Nickel | 方向 | Straight |
| 端接方式 | :Solder | 重量（g） | 8.80000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Push-Pull |
| 壳体镀层 | :Chrome | 连接器样式 | NIM-CAMAC CD/N 549 |
| 触头材料 | Brass | 屏蔽层端接方式 | Solder |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Bronze |
| 供应商器件封装 | Right Angle | 第一连接器安装类型 | :PCB |
产品信息
| 连接器性别 | Plug | 系列 | :- |
| 极性 | Standard | ||
环境参数
| 插拔次数 | :1000 | 工作温度 | -55°C ~ 260°C |
