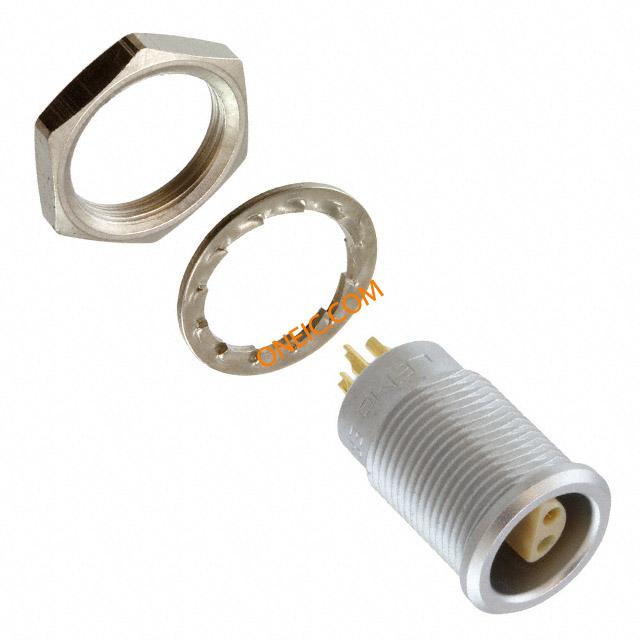

ERA.0S.304.CLL
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 34 Days | Subcategory | Connector Circular |
| Product Category | Circular Push Pull Connectors | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Number of Poles | 4 | Current Rating (Max) | 7A |
| Current Rating - Appliance Inlet | 6 | Voltage - Protection Level (VP) (2416) | IP 50 |
Mechanical
| Packaging | Bulk | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Weight (g): | 8.80000 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome | Connector Type | Receptacle, Female Sockets and Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Locking Feature | Push-Pull | Contact Material | CuNi+Au |
| Housing Material | Brass (CuZn) | Termination Style | Solder |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 304 |
| 1st Connector Gender | Female | Shell Material, Finish | Brass, Chrome Plated |
Product Info
| Design | Panel-mount female receptacle | Series | S |
| Features | Shielded | Main Purpose | Shielded |
| Product Type | Connectors | Connection Method | 0.34 |
| Output Configuration | Panel Mount, Bulkhead - Rear Side Nut | ||
Environmental
| Ingress Protection | IP50 - Dust Protected | Operating Temperature | -55°C ~ 250°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- ERA.0S.304.CLL
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
