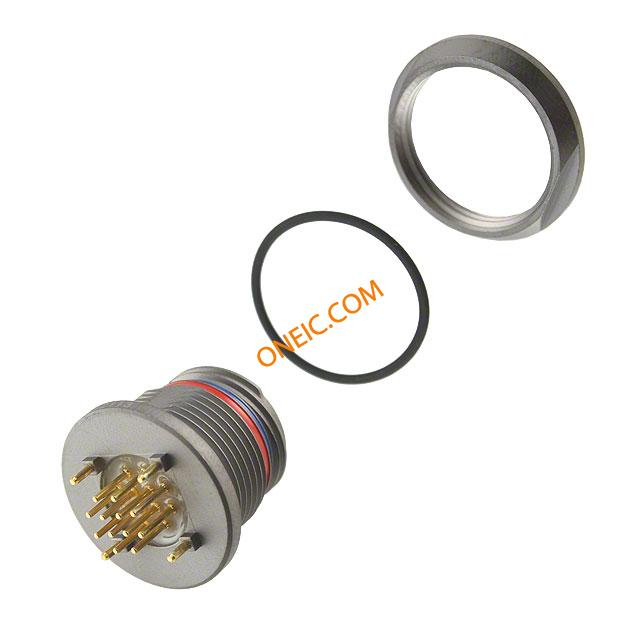

HEN.2M.312.XLNP
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 15 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85369010 | ||
Electrical
| Current Rating (Max) | 7A | Connector - Voltage Input | Standard |
Mechanical
| Weight | 0.013 | Packaging | Bulk |
| Shielding | Shielded | Orientation | N (Normal) |
| Termination | Solder | Mounting Type | Panel Mount, Flange; Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Threaded | Insertion Angle | :12-0008 |
| Material - Body | :Aluminium | Contact Material | Bronze |
| Housing Material | Aluminium Alloy | 1st Contact Gender | :Socket |
| Number of Contacts | 12 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 12 | Shell Size - Insert | 312 |
| Shell Material, Finish | Aluminum, Nickel Plated | 1st Connector Mounting Type | :PCB |
Product Info
| Gender | Female | Series | 2M |
| Features | Shielded | ||
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -55°C ~ 200°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- HEN.2M.312.XLNP
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
