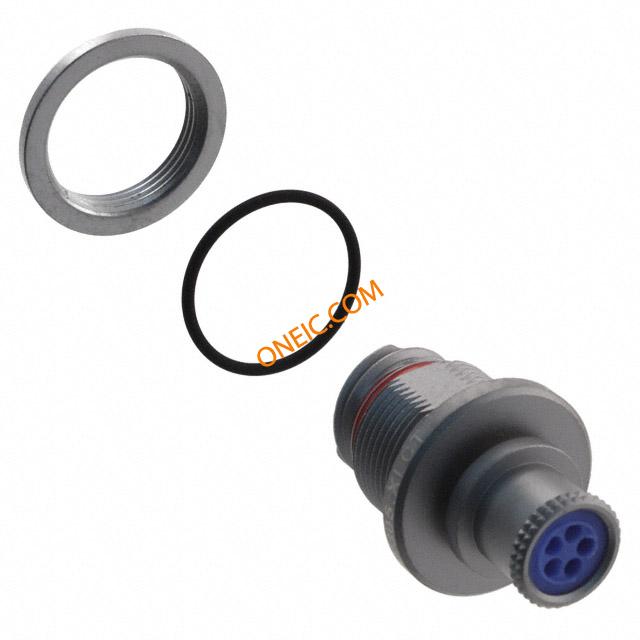

PES.0M.305.XLCT
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard Circular Connector | Standard Package | 15 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 1.25 kV | Current Rating (Max) | 6.5A |
Mechanical
| Packaging | Bulk | Wire Gauge | 22 AWG to 26 AWG |
| Orientation | S | Shell Style | Receptacle |
| Termination | Crimp | Mounting Type | Panel Mount, Flange - Front Side Nut |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Panel |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Positions | 5 | Shell Size - Insert | 305 |
| Shell Material, Finish | Aluminum, Nickel Plated | ||
Product Info
| Series | M | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 200°C |
Documents & Media
Sourcing & traceability
- Datasheet
- PES.0M.305.XLCT
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
