LTL-10223W
| Manufacturer | |
| Description | LED Uni-Color Red 635nm 2-Pin T-1 3/4 Standard LEDs - Through Hole Red Diffused LED 5MM HIEFF RED DIFF NO FLANGE |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Standard LEDs - Through Hole | Standard Package | Bulk |
| Factory Pack Quantity | 1000 | Standard Package Name | T-1 3/4 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Optic Size | T-1 3/4 | Lamp Output | No |
| Luminous Flux | 60 mcd | Power - Rated | 100 W |
| Viewing Angle | 60 ° | Current - Output | 10mA |
| Voltage - Supply | 2V | Wavelength - Peak | 635 nm |
| Number of Elements | 1 | Current - Trip (It) | 10 mA |
| LED Forward Current | 20 mA | LED Forward Voltage | 2.6 V |
| Millicandela Rating | 60mcd | Current Rating (Max) | 10mA |
| Wavelength - Dominant | 623 nm | Power Dissipation (Max) | 100 |
| Current - Peak Pulse (10/1000us) | 30 | MSCP (Mean Spherical Candle Power) | 60mcd |
| Voltage - Gate Trigger (Vgt) (Max) | 5 V | ||
Mechanical

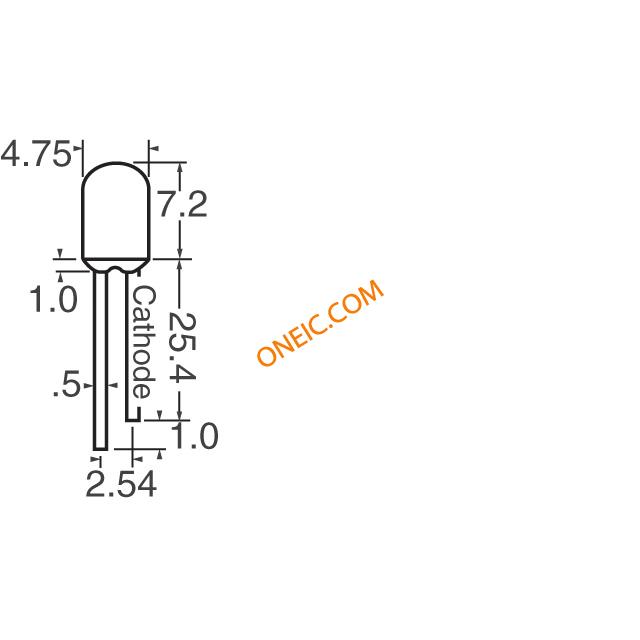

| Color | Red | Depth | 4.75 mm |
| Shape | Circular | Height | 7.20mm |
| Packaging | Bulk | Lead Style | Through Hole |
| Lens Color | Diffused | Lens Style | Circular |
| Light Color | Red | Lens Diameter | 5 mm |
| Mounting Type | Through Hole | Mounting Style | Top Mount |
| Package / Case | 2T-1 3/4 | Package Cooled | T-1 3/4 |
| Lens Style/Size | Round with Domed Top, 5mm, T-1 3/4 | Length - Overall | 4.75 mm |
| Package Quantity | T-1 3/4 | Illumination Color | Red |
| Number of Positions | 2 | ||
Product Info
| Type | Uni-Color | DELETED | Compliant |
| Lens Type | Colored Diffused | Main Purpose | Standard LED |
| Number of LEDs | 1 | Output Configuration | Through Hole |
Environmental
| Operating Temperature | + 100 C | Luminous Flux @ Current/Temperature | 60 mcd |
