点击放大查看

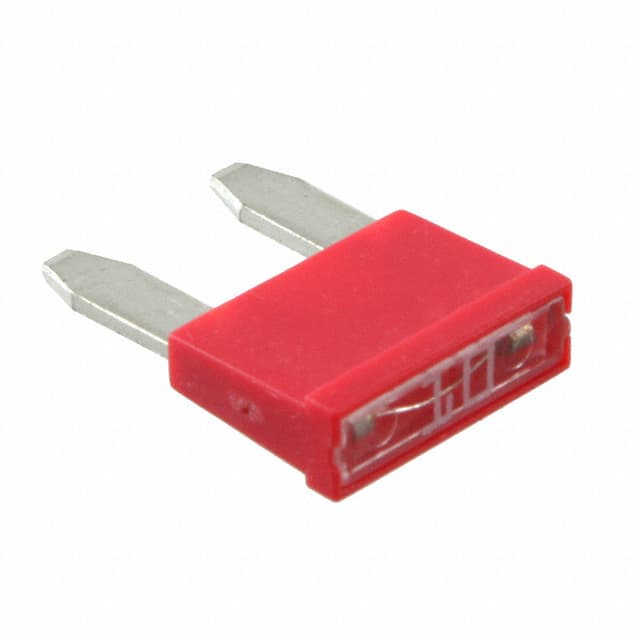

0297010.WXNV
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 3000 | Product | Automotive Fuses |
| Unit Pack | 3000 | Product Category | Fuses |
| Standard Package | 3,000 | Factory Pack Quantity | 3000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85361010 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
Electrical
| Current | 10A | Voltage | 32V |
| Indicator | Without Indicator | Resistance | 0.0073 Ohms |
| Access Time | FAST | Melting I2t | 93 |
| Response Time | Fast | Voltage Rating | 32 V |
| Frequency - Max | F | Interrupt Output | 1 kA at 32 VDC |
| DC Cold Resistance | 0.00742 Ohm | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 1000 A | Blowout Characteristic | :Fast Acting |
| Voltage - Supply (Min) | 1000 | ||
Mechanical
| Axis | RADIAL | Size | Miniature |
| Color | Red | Depth | 3.8 |
| Pitch | 5.2mm | Width | 8.8 mm |
| Height | 8.8mm | Length | 10.9mm |
| Weight | 0.06 | Diameter | 3.8 mm |
| Packaging | Bulk | Blade Size | Mini |
| Termination | Blade | Body Material | Polyamide |
| Mounting Type | Socket | Length - Blade | :7.5mm |
| Mounting Style | Holder | Package / Case | 3.8 mm |
| Material - Body | Thermoplastic | Length - Overall | 10.9 |
| Package Quantity | 3000 | Primary Material | Automotive |
| Size / Dimension | 10.9 mm L x 8.8 mm W x 3.8 mm D | Termination Style | Blade |
| Color - Connectors | Red | Number of Contacts | 2 |
Product Info
| Spg | 3000 | Type | Mini Blade Fuse |
| Series | 297 | Fuse Size | Mini |
| Fuse Type | Fast Blow | Matchcode | FU10AAUTO |
| Product Type | Blade Fuse | Number of Units | 10 |
| Firmware Version | red | Standard Leadtime | 14 weeks |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
