点击放大查看
39613150000
| Manufacturer | |
| Description | Fuses 125V UL TL LL 3.15A TE5 Fuse Subminiature Slow Blow Acting 3.15A 125V Radial 8.5 X 4 X 8mm Ammo Pack FUSE SLOW 125VAC 3.15A RADIAL Fuses with Leads (Through Hole) 125V UL TL LL 3.15A TE5 FUSE, PCB, 3.15A, 125V, TIME DELAY FUSE, ANTISURGE, TE5, 3.15A Fuse: fuse; time-lag; 3.15A; 125VAC; TE5 Littelfuse 3.15A 径向 带引线的 PCB 固定熔断器, T熔断速度, 125 V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Specialty Fuses | Other Names | WK6279CT |
| Product Category | Fuses | Standard Package | 1,400 |
| Factory Pack Quantity | 1400 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85361010 |
| Rad Hardened | No | Approval Agency | cUL, PSE/JET, UL |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Indicator | Without Indicator | Melting I2t | 22 |
| Power - Rated | 0.35 W | Response Time | Slow |
| Voltage Rating | 125 V | Interrupt Output | 100 Amps at 125 VoltsAC |
| DC Cold Resistance | 0.02156 Ohm | Voltage - Rated AC | 125V |
| Current Rating (Max) | 3.15 A | Fuse Characteristics | time-lag |
| Voltage - Input (Min) | 125 | Blowout Characteristic | :Time Delay |
| Voltage - Supply (Min) | 100A | Power Dissipation (Max) | 350 |
Mechanical
| Depth | 4 mm | Width | 8.5 mm |
| Height | 8 mm | Length | :8mm |
| Weight | 0 | Packaging | Ammo |
| Lead Spacing | :5.08mm | Pin Diameter | :0.6mm |
| Body Material | Thermoplastic | Mounting Type | Through Hole |
| Terminal Type | :Radial Lead | Mounting Style | Through Hole |
| Package / Case | 4 mm | Length - Overall | 8.5 mm |
| Package Quantity | 1400 | Size / Dimension | 8 mm L x 8.5 mm W |
| Termination Style | Radial | Length - Lead Wire | :18.8mm |
| Number of Contacts | 2 | Number of Positions | 2 |
| Mounting Hole Diameter | :1mm | Supplier Device Package | Leaded Fuses |
| Material - Housing & Prism | :Thermoplastic | ||
Product Info
| Spg | 1400 | Type | PCB Mount Fuse |
| Series | 396 | DELETED | Compliant |
| Fuse Size | TE5 | Fuse Type | Time Delay / Slow Blow |
| Product Type | PCB Mount Fuse | Number of Units | 1 |
| Other Specifications | 110mV | ||
Environmental
| Must Operate | Slow Blow | Operating Temperature | - 40 C to + 85 C |
Documents & Media
PDF Document
PDF Document
Similar Parts
56400001009
Littelfuse
Fuse Holders Surface Mount TR5/TE5 Holder PN may be NE SA CE AP NA SE Holder for TR5 and TE5 SMT RM5 FUSE HOLDER RADIAL 250V 6.3A SMD FUSE HOLDER, PCB MOUNT Fuse Holder Surface Mount TR5/TE5 Holder
$9.5893
Details

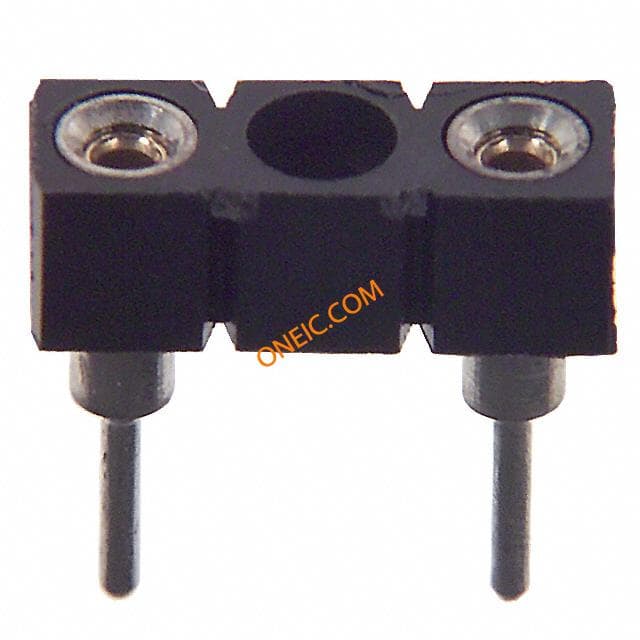

56200001009
