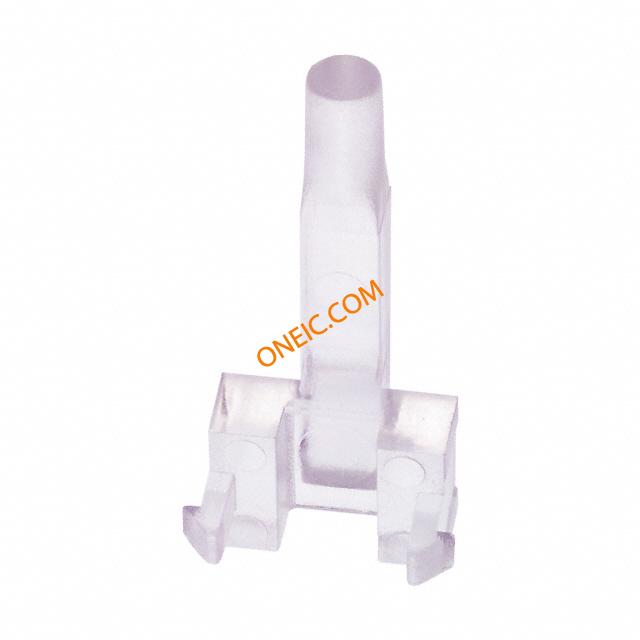

LPF-C011304S
| Manufacturer | |
| Description | LED Light Pipes RA Light Pipe Clr 2.8mm Round LIGHT PIPE 2.8MM SGL RA POS SMD Single Unit, Stackable Right Angle SMT Light Pipe LIGHT PIPE, SINGLE, ROUND, PCB LightPipe;Clear |
| Category |
商业参数
| 产品 | Rigid Light Pipes | 产品类别 | LED Light Pipes |
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85414090 | ||
电气参数
| 光学尺寸 | 1206, 1210 | ||
机械参数
| 颜色 | Clear | 形状 | Round |

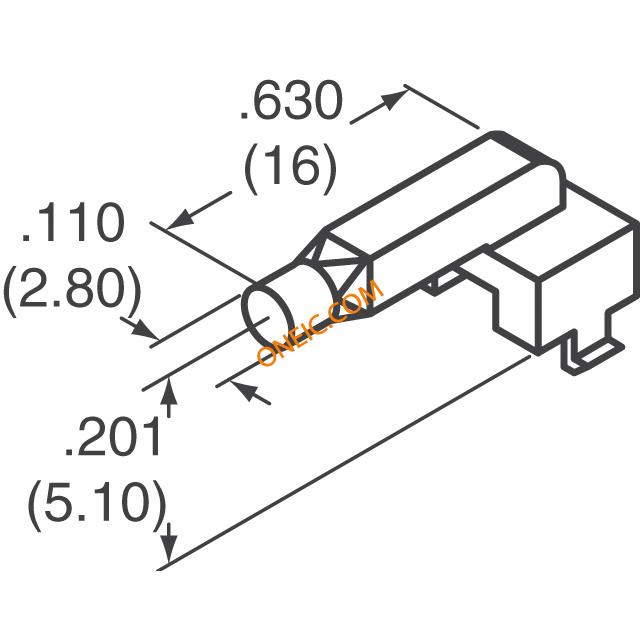

| 宽度 | 0.177in. | 长度 | :16mm |
| 重量 | 0 | 材料（通用） | Polycarbonate (PC) |
| 包装方式 | :Each | 透镜颜色 | :Transparent |
| 安装类型 | Board Mount, Press Fit, Right Angle | 安装样式 | SMD/SMT |
| 透镜样式/尺寸 | Round with Flat Top, 2.8mm | 总长度 | 18.9 mm |
| 主要材料 | LightPipes | 尺寸/外形 | 2.8 mm |
| 背景色 | :Transparent | 位数 | :1 |
| 光学边缘厚度 | :Circular with Flat Top | ||
产品信息
| 类型 | Rigid | 系列 | SML-LX23Series |
| 配置 | Single | 应用细节 | Frontpanelandfaultindicator,lighttransporter,legendbacklight |
| 适用产品/相关产品 | :LED Series SML-LX1206, SML-LX1210 | ||
