MAS800Q
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 458-1086 | Standard Package | 1 |
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 2.7kHz | Input Type | DC |
| Voltage Range | 9 ~ 12V | Operating Mode | Continuous |
| Voltage Rating | 12VDC | Current - Output | 50mA |
| Driver Circuitry | Indicator, Internally Driven | Sound Pressure Level (SPL) | 103dB @ 12V, 10cm |
Mechanical
| Packaging | Bulk | Termination | PC Pins |

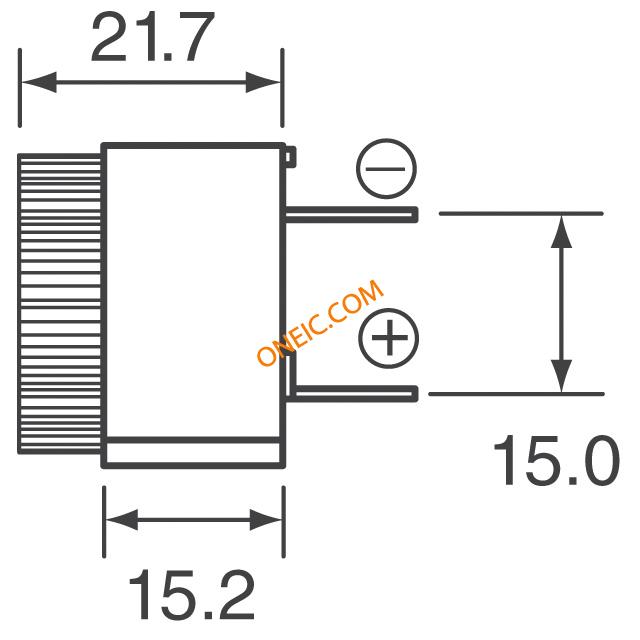

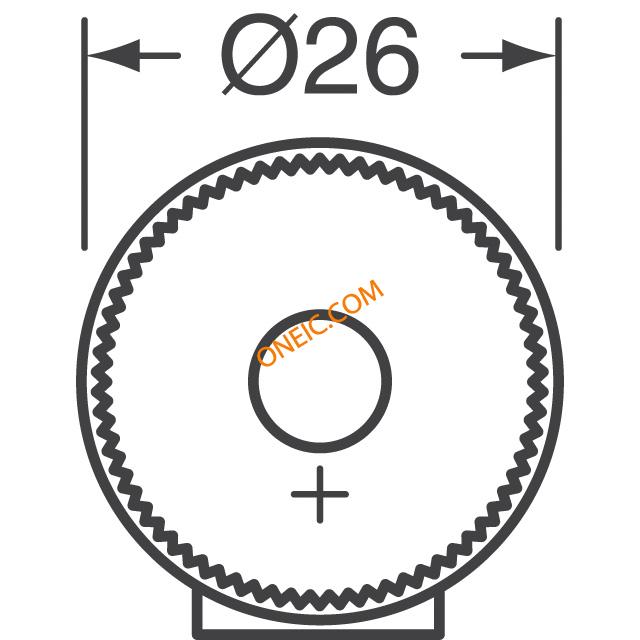

| Mounting Type | Through Hole | Size / Dimension | Circular - 26.30mm Dia x 21.90mm H |
Product Info
| Washable | No | Technology | Piezo |
Environmental
| Operating Temperature | -20°C ~ 90°C | ||
Documents & Media
Sourcing & traceability
- Datasheet
- MAS800 Figure9A
