MCP320Q
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 458-1060 | Standard Package | 20 |
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 3.15kHz | Input Type | DC |
| Voltage Range | 3 ~ 20V | Operating Mode | Continuous |
| Voltage Rating | 12VDC | Current - Output | 3 ~ 25mA |
| Driver Circuitry | Indicator, Internally Driven | Voltage - Supply | 3 ~ 20V |
| Current Rating (Max) | 3 ~ 25mA | Sound Pressure Level (SPL) | 55dB @ 3V, 61cm |
Mechanical

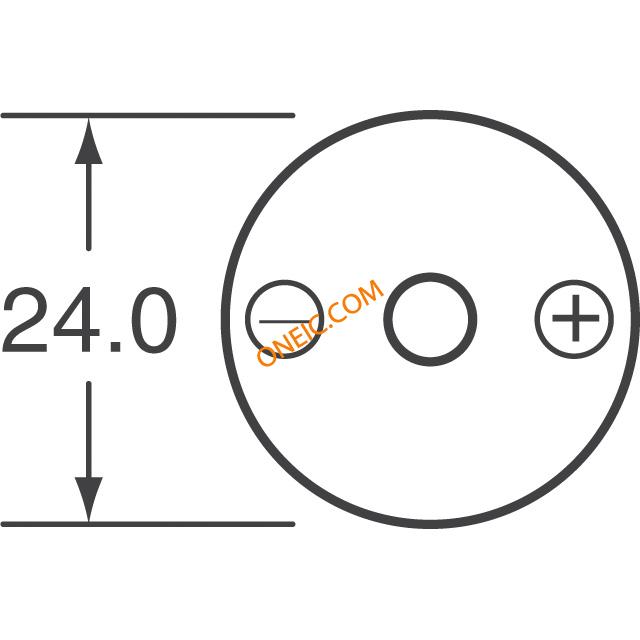

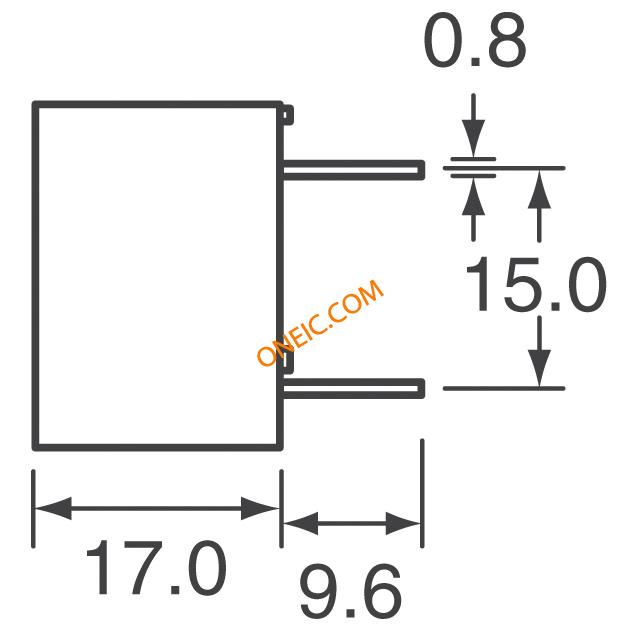

| Size | Circular - 24.00mm Dia x 17.50mm H | Packaging | Bulk |
| Termination | PC Pins | Mounting Type | Through Hole |
| Size / Dimension | Circular - 24.00mm Dia x 17.50mm H | ||
Product Info
| Series | Sonalert® | Washable | Yes |
| Technology | Piezo | Other Specifications | 55dB @ 3V, 61cm |
Environmental
| Operating Temperature | -20°C ~ 90°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- MCP320Q
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
