MSS5M1
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Frequency | 1kHz ~ 4kHz | Input Type | DC |
| Voltage Range | 4.5 ~ 5.5V | Operating Mode | 3 Pulsing Modes |
| Voltage Rating | 5VDC | Current - Output | 10 ~ 250mA |
| Driver Circuitry | Indicator, Internally Driven | Sound Pressure Level (SPL) | 85dB @ 5V, 10cm |
Mechanical
| Packaging | Bulk | Termination | PC Pins |

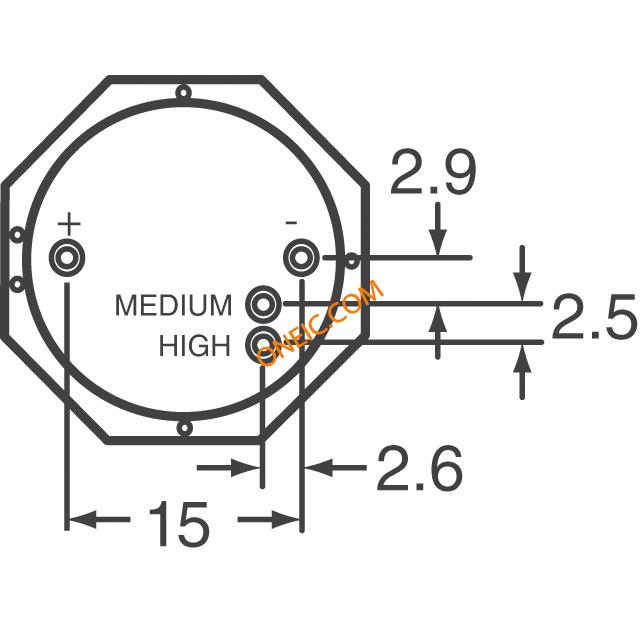

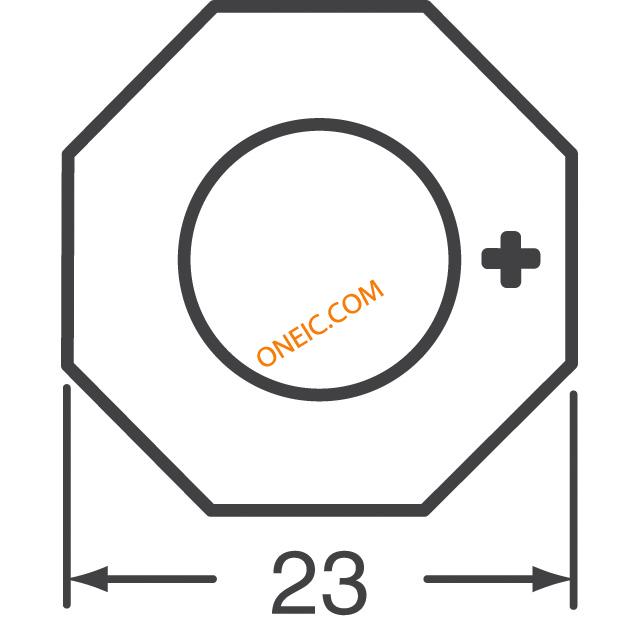

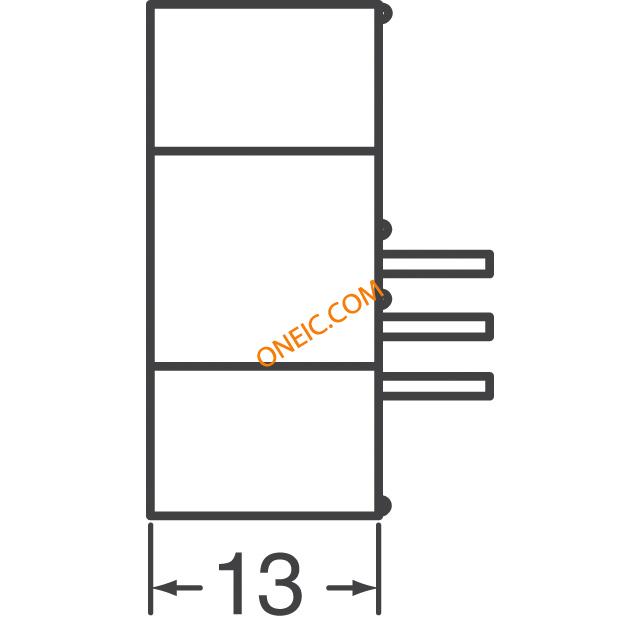

| Mounting Type | Through Hole | Size / Dimension | Circular - 23.00mm Dia x 13.00mm H |
Product Info
| Washable | No | Technology | Piezo (Programmable) |
Environmental
| Operating Temperature | -30°C ~ 70°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- MSS5M1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
